| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO |
| رقم الموديل: | إيك-1275 |
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | لوح صلب |
| وقت التسليم: | 35 يومًا |
| شروط الدفع: | Western Union ، T/T ، L/C |
| القدرة على العرض: | 50 مجموعة في الشهر |
| اختبار معيار: | ASTM D1275، IEC 62535 | Working temp.: | Ambient~150ºC |
|---|---|---|---|
| مراقبة درجة الحرارة: | PID المستورد | مزود الطاقة: | AC220V ± 10 ٪ ، 50 هرتز |
| توقيت: | مؤقت رقمي | شريط نحاسي قياسي: | نقاء 99.9٪، سمك 0.125 ~ 0.250mm |
| مقاس: | 600 × 600 × 650mm3 | وزن: | 31 كجم |
| القوة الكلية: | 1200W | Application: | insulating oil testing |
Introduction

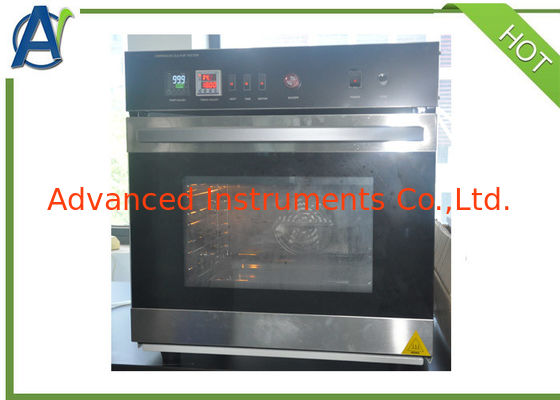

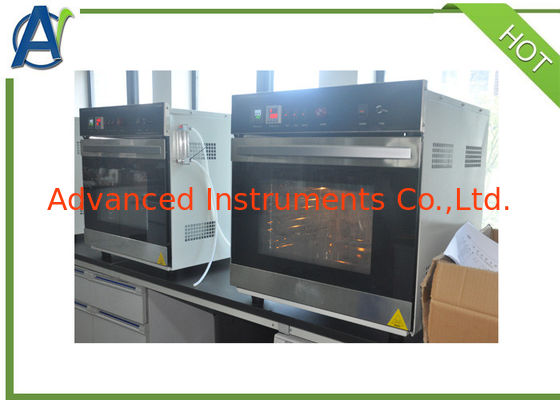

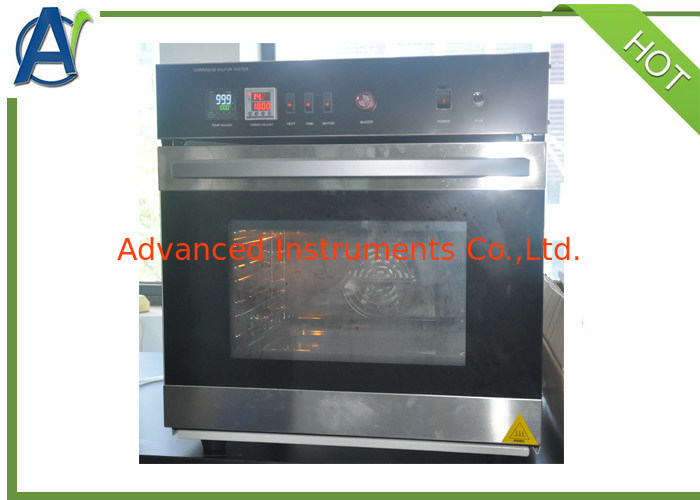

This Corrosive Sulfur Apparatus is used to determine corrosive sulfur compounds (both inorganic and organic) in electrical insulating liquids.
New and in-service insulating liquids may contain elemental sulfur or sulfur compounds, or both, that cause corrosion under certain conditions of use.
This Corrosive Sulfur Apparatus is designed to detect the presence of, or the propensity to form, free (elemental) sulfur and corrosive sulfur compounds by subjecting copper or silver to contact with an insulating liquid under prescribed conditions.
I.Main features
1. Stainless steel heating box with transparent observation window for easy operation, and a hole for inserting a thermometer at the top
2. The surface of the instrument is treated with electrostatic spray molding, which is corrosive and easy to clean
3. Digital display timer, with an accuracy deviation of no more than 2min per hour, recording the test time, and equipped with a time alarm.
Technical Specifications
| 1 | Applicable standards | SH/T0804,ASTM D1275,IEC 62535 |
| 2 | Temperature controlling method | PT100 temperature sensor,digital display |
| 3 | Temperature controlling rang | room temperature~150 |
| 4 | Temperature controlling accuracy | within ±1ºC |
| 5 | Timing method | digital timer |
| 6 | Total power | 1.5KW |
| 7 | Standard siliver test strip | cold rolled 20×40×0.5mm3,purity 99.99 |
| 8 | Power supply | AC220V/50Hz |
| 9 | Overall dimension | 600*600*650mm3 |
| 10 | Weight | 31KG |
