| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO |
| Model Number: | BDV-1 |
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | حالة الخشب الرقائقي |
| وقت التسليم: | 15 يومًا |
| شروط الدفع: | Western Union ، T/T ، L/C |
| القدرة على العرض: | 100 مجموعة في الشهر |
| Test Standard: | IEC60156/IS6792/BS5874/ASTM D1866/ASTM D877 | إخراج الجهد: | التيار المتردد 0 فولت ~ 100 كيلو فولت |
|---|---|---|---|
| عرض: | شاشات الكريستال السائل | مزود الطاقة: | AC220V ± 10٪ ، 50 هرتز / 60 هرتز |
| Keyword: | Transformer Oil Tester Kit | ضمان: | 1 سنة |
| مقاس: | 620 مم * 430 مم * 330 مم | وزن: | 41 كجم |
I. Introduction:

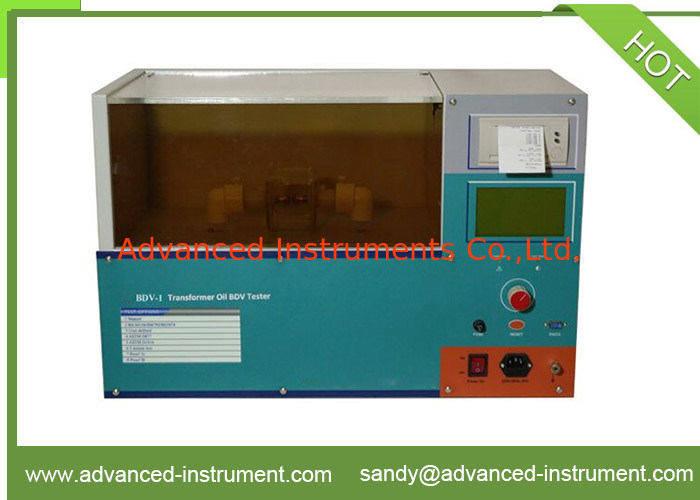

BDV-1 Transformer Oil Test Kit is designed according to the national standard IEC156 Insulation Oil Dielectric Strength Test Method;
This transformer oil tester has large LCD display, micro-printer and can store 100 groups data;
This oil test kit is multi-functional, stable, and easy for operation;
II. Functions:
Breakdown test of user-defined;
Proof test;
IEC60156/IS6792/BS5874 test;
ASTM D1816 standard test;
ASTM D877 standard test;
5 minutes standard test;
Manual test;
Calibration interface for customers;
This transformer oil tester can upload data to PC and making word report automatically;
Result can be printed by insulation oil tester;
III.Specifications:
| Output voltage | AC 0V~100KV |
| Rate of voltage rise | 0.5kv/s±5%, 2kv/s±5%, 3kv/s±5%,5kv/s±5% |
| Max test times setting for user-defined mode | 9 |
| Stir time setting for user-defined mode | 0~999s |
| Waiting time setting for user-defined mode | 0~999s |
| Test error | 3%RDG+0.3%FS |
| Display | 256´128 LCD |
| Maximum storage capacity | 100 groups of test data |
| Power supply | AC220V±10%, 50Hz/60Hz |
| Working environment | 0-50℃, ≤80%RH |
| Size | 620 mm*430mm*330mm |
| Weight | 41kg |
