| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO |
| Model Number: | AIC-943 |
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | لوح صلب |
| وقت التسليم: | 20 يومًا |
| شروط الدفع: | L/C ، T/T ، Western Union |
| القدرة على العرض: | 20 مجموعات شهريا |
| Test standards: | ASTM D943,GB/T12581 | Temperature range: | ambient~120℃±0.1℃ |
|---|---|---|---|
| Flow range: | 0～200ML/H | Dimensions: | 630*710*930mm |
| مزود الطاقة: | 220V 50Hz | وزن: | 50 كجم |
| استهلاك الطاقة: | 2400W | Keyword: | Oxidation Characteristics Test Apparatus |
| طريقة التدفئة: | قضيب التدفئة الكهربائية | Test standard: | ASTM D943 |

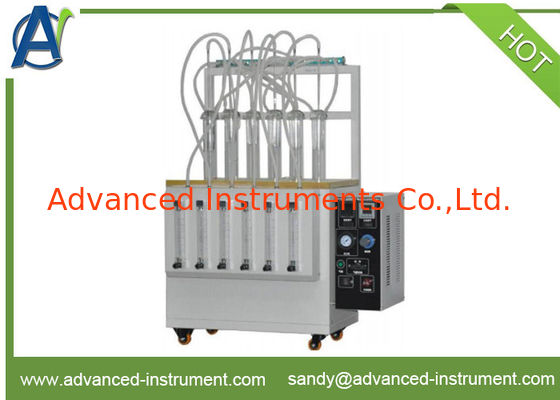

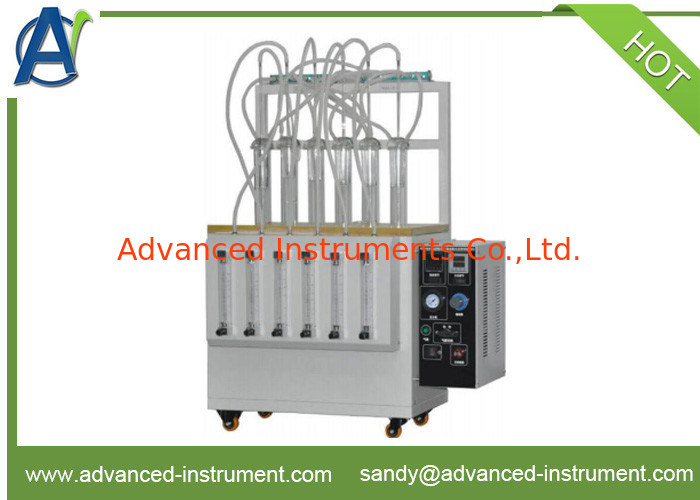

The Oxidation Characteristics Test Equipment is applicable to Unused mineral insulating oil with inhibitor. It can also be used to understand the tendency of Unused mineral insulating oil to form acid and sediment before and after the induction period.
The use method is: the sample is kept at a certain temperature in the presence of copper catalyst coil, and at the same time, a constant oxygen flow is used to measure the time required for the volatile acid produced by the oxidation of the sample to increase to equivalent to the neutralization value of 0.28mgkoh/g, indicating the oxidation stability of the sample by the induction period.
◆ The Oxidation Characteristics Test Equipment adopts Metal bath heating,safe and environment-friendly.
◆ Mic-computer temperature controller,digital display,accuracy ±0.1℃, PT100 sensor.

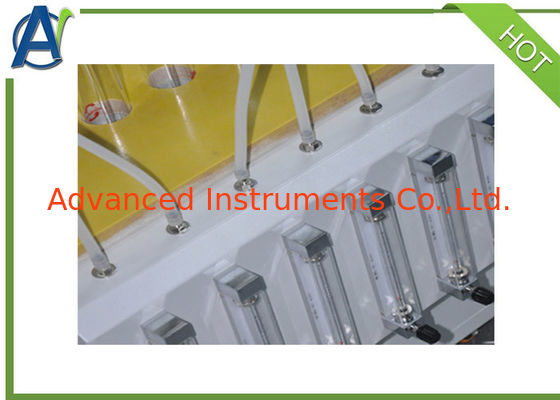

◆ Precise flow meter controls air flow.
◆ The Oxidation Characteristics Test Equipment can do 6 tests simultaneously,every 3 samples for two groups.
◆ Working time is displayed digitally
◆ The Oxidation Characteristics Test Equipment provides Glass tube as per standards.
◆ Big power solid relay controlls temperature rising
◆ The Oxidation Characteristics Test Equipment has function of Over-temperature alarming.
Technical Specifications
| Model | AIC-943 Inhibited Mineral Oils Oxidation Characteristics Tester |
| Applicable standards | GB/T12581 ASTM D943 |
| Heating method |
electrical heating rod |
| Temperature controlling range | ambient~120℃±0.1℃ |
| Temperature controlling method |
imported digital PID temperature controller |
| Working units |
6 |
| Timing method | digital timer |
| Flow range | 0～200ML/H |
| Total power consumption | 2400W |
| Dimensions | 630*710*930mm |
| Weight | 50KG |
| Power supply | AC220V 50HZ |
