| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO |
| رقم الموديل: | 3100 |
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | لوح صلب |
| وقت التسليم: | 20 يومًا |
| شروط الدفع: | L/C ، T/T ، Western Union |
| القدرة على العرض: | 20 مجموعات شهريا |
| Wavelength range: | 190~700nm | النطاق الترددي: | 8 نانومتر |
|---|---|---|---|
| طول المسار: | 10mm | مصدر الضوء: | مصباح ديوتيريوم |
| كيوارد: | HPLC | ضمان: | 1 سنة |

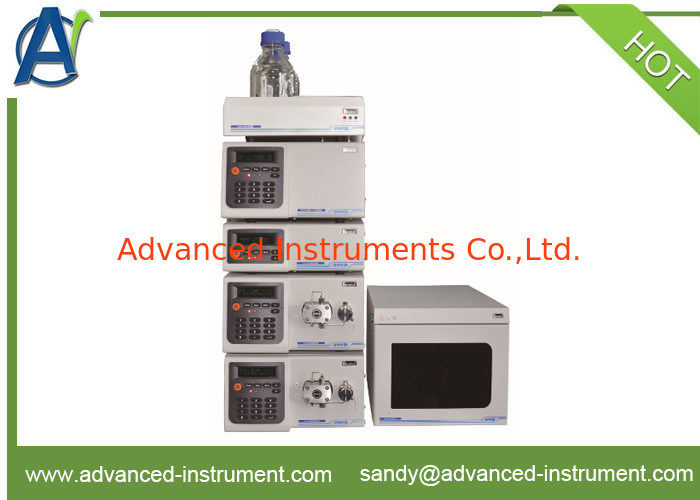

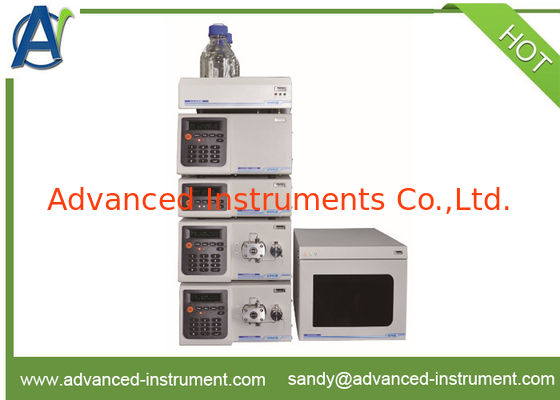

P3100 High Pressure Constant Flow Pump
◆ Flow rate range: 0.001-10.000 mL/min, in 0.001 mL increments
◆ Flow accuracy: ≤±0.2% (1.00ml/min, H2O,R.T.,8.5MPa)
◆ Flow precision: RSD≤0.06% (1.00ml/min, H2O,R.T.,8.5MPa)
◆ Maximum pressure: 45MPa
UV3100 UV/VIS Detector
| Wavelength range | 190-700 nm |
| Wavelength repeatability | ≤0.1 nm |
| Wavelength accuracy | ≤±1.0 nm |
| Bandwidth | 8nm |
| Response time | 0.0 s-5 s |
| Baseline noise | ≤±0.5×10-5 AU |
| Drift | ≤1.0×10-4 AU/h (empty cell, 254 nm, 60 min) |
| Path length | 10 mm(analytical cell) |
| Light sourcw | Deuterium Lamp |
Chromsoft Chromatographic Data-processing Workstation
◆ Internal and external standard calculation methods
◆ Automatically displays, prints, exports and starts other programs after the completion of a measurement.
◆ Comply with the requirements of the 21 CFR Part 11 directive of the FDA
Eclassical 3100 System Kits
◆ Containing required tubing, fittings, wreches and cables for system.
◆ C18 column 5μm ID4.6×200mm
◆ 7725i manual injector
◆ TD-1-15 mixer
◆ User manual
RI-201H Refractive Index Detector
◆ Flow cell type:2 chamber-type
◆ Measuring method:Deflection type
◆ Refractive Index range:1.00 to 1.75
◆ Measuring range:0.25 to 512μRIU
◆ Drift:0.2μRIU/h (Pure water 1mL/min, PURGE OFF)
◆ Linearity range:≥600μRIU
◆ Noise:≤2.5nRIU (Pure water, response : 1.5sec)
◆ Response:0.1 , 0.25 , 0.5 , 1 , 1.5 , 2 , 3 , 6 sec
◆Cell volume:8μL
◆Flow rate:(Usual) 0.2 to 3.0mL/min；(Max.) 10mL/min (solvent: pure water)
