| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO |
| Model Number: | RT-8S |
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | لوح صلب |
| وقت التسليم: | 20 يومًا |
| شروط الدفع: | L/C ، T/T ، Western Union |
| القدرة على العرض: | 20 مجموعات شهريا |
| Measurement range: | 10 mPa•s～2000000 mPa•s | Spindle: | No.1～No.4, total four spindles |
|---|---|---|---|
| Rotation speed: | 12 RPM, 30 RPM, and 60 RPM, 8 grades in total | Power supply: | AC 220 V±10%, 50 Hz±10% |
| كيوارد: | مقياس ثقافة الدوران | ضمان: | 1 سنة |
Summary

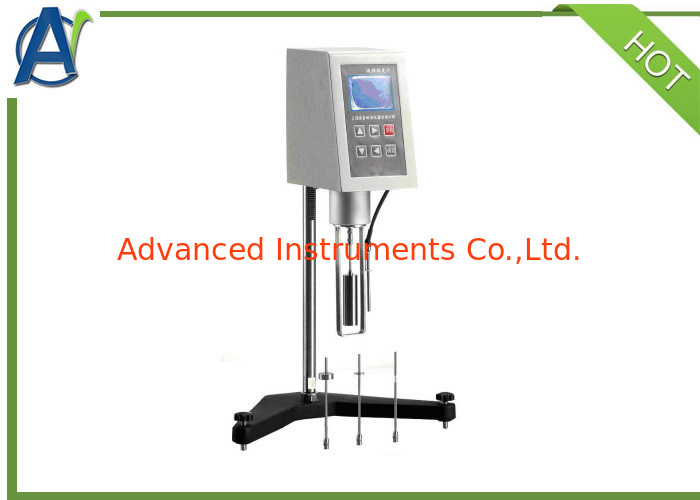

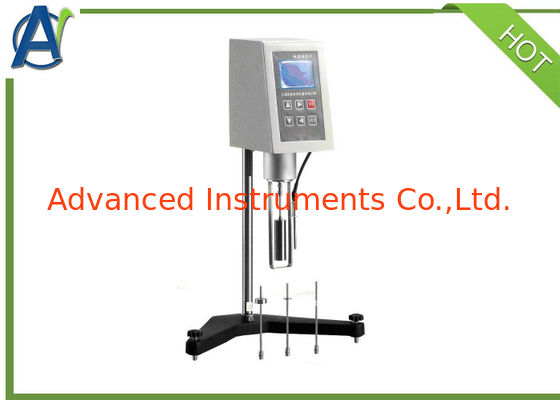

The rotational viscometer adopts advanced mechanical design technologies, manufacturing techniques, and microcomputer controlling techniques, so it can collect data accurately. It uses background light, ultra-brighten LCD, so it can show test data clearly. It has a special printing port, so it can print out test data through a printer.
The viscosity meter has characteristics of high measurement sensitivity, reliable measurement data, convenience, and good looking. It can be used to determine absolute viscosity of Newtonian liquids and apparent viscosity of Non-Newtonian liquids. It has been widely used to determine viscosity of oil greases, paints, plastic materials, pharmaceuticals, coating materials, adhesives, washing solvents, and other fluids.
I. Main technical specifications
1. Measurement range: 10 mPa•s～2000000 mPa•s
2. Spindle: No.1～No.4, total four spindles
3. Rotation speed: 0.3 RPM, 0.6 RPM, 1.5 RPM, 3 RPM, 6 RPM,
12 RPM, 30 RPM, and 60 RPM, 8 grades in total
4. Temperature range: 0~200℃.
5. Measuring accuracy: ±1% (F•S)
6. Power supply: AC 220 V±10%, 50 Hz±10%
7. Ambient temperature: 5 ℃～35 ℃
8. Relative humidity: ≤80%
III. Optional accessories
1.CWB-10 Circulatory water bath
2. Special double-layer sample cup
3. No.0 spindle(low viscosity adapter)
4.Small sample adaptor
IV.Standard Accessories
| No. | Name of components | Unit | Qty | Remarks |
| 1 | Main unit of RT-8S rotational viscometer | Set | 1 | |
| 2 | No.1～No. 4 spindle | Piece | 1 for each | |
| 3 | Protection cover | Piece | 1 | |
| 4 | Stand column | Piece | 1 | |
| 5 | Pedestal(including two pieces of level adjustment bolts) | Pair | 1 | |
| 6 | Spindle protection holder | Piece | 1 | |
| 7 | Power supply adapter | Piece | 1 | |
| 8 | Printer(including connecting cable and power line) | Set | 1 | Optional |
| 9 | Aluminum alloy case (including instrument head, spindle, spindle protection holder,etc) | Piece | 1 |
