Standard:
ISO 6530: 2005:Protective clothing - Protection against liquid chemicals - Test method for resistance of materials to penetration by liquids.

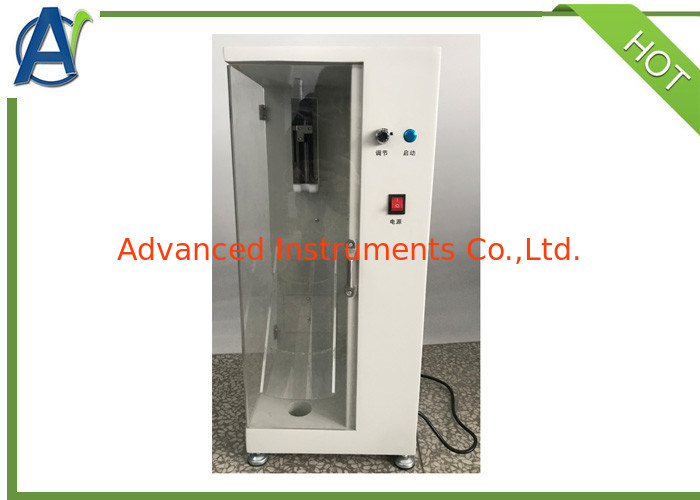

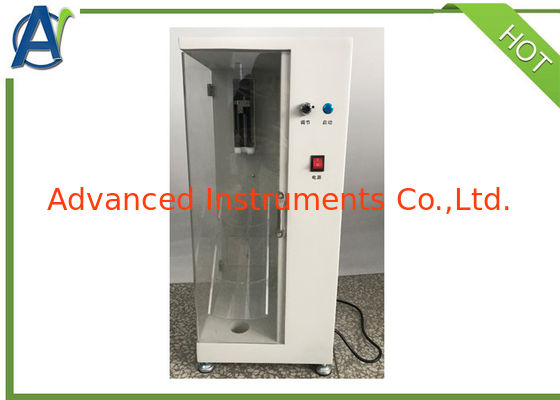

Specification of AIC-6530 Liquid Penetration Test Apparatus:
1. Test tank: semi-cylindrical, inner diameter (125±5) mm, length (300±2) mm, inclined 45°.
2. Syringe: specification (10±0.5) ml, needle hole diameter: (0.8±0.02) mm.
3. Automatic injection system, the syringe continuously sprays (10±0.5) ml test within (10±1) s to ensure the accuracy and reliability of the test.
4. With organic glass protective cover:
Size (length*width*height cm): 45*40*52
Weight (kg): 25
Installation requirements of AIC-6530 Liquid Penetration Test Apparatus:
| 1 |
Power supply |
AC 220V 50Hz 200W |
| 2 |
Environment |
23±5ºC, 65%±5% |
| 3 |
Operation |
test bench |
