Performance Characteristics
1.Executive standard: GB/T4074.3-2008,IEC60851-3;

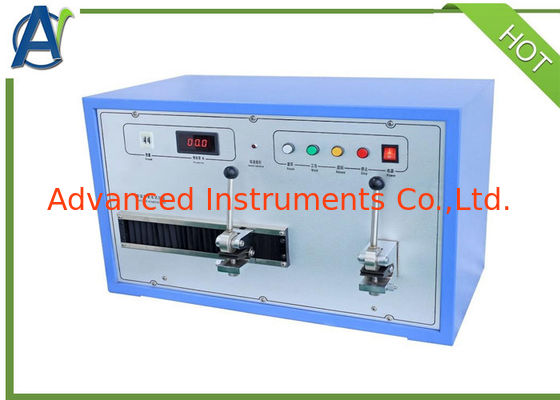

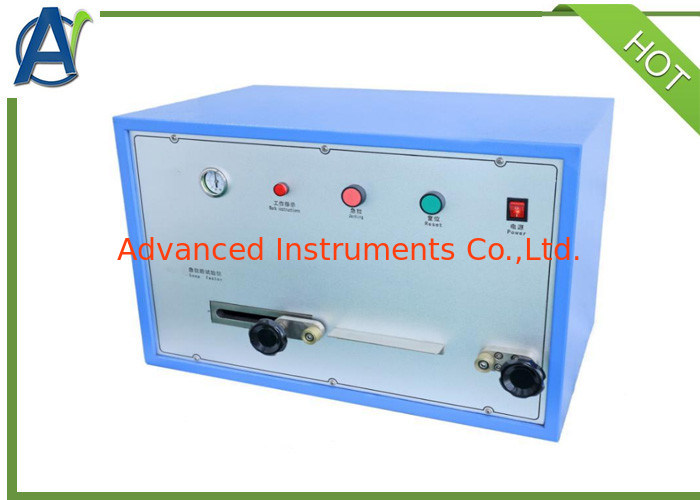

2.Inspection standard: JB/T4279.5-2008
3.This Jerk Test Apparatus is used to measure the film adhesion property of enameled round wires with nominal conductor diameter of 1.000mm and below;
4.Built-in small ultra-quiet air compressor would provide power supply and automatic constant pressure;
5.When the sample is pulled abruptly, it will not move or slip;
Technical Parameters
| Jerking speed |
≥3m/s |
| Start distance between two clamps |
250±1mm |
| Maximum moving distance of movable clamp |
125mm |
| Working pressure |
0.4~0.8MPa |
| Input power |
AC220V±10% 50Hz |
| Power consumption |
<150W |
| Overall dimensions |
L×W×H 650×405×425mm |
| Weight |
55kg |
