| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO |
| رقم الموديل: | AIC22054 |
| Minimum Order Quantity: | 1 SET Swing Testing Equipment |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | حالة الخشب الرقائقي |
| وقت التسليم: | 25 يومًا |
| شروط الدفع: | Western Union ، T/T ، L/C |
| القدرة على العرض: | 50 مجموعة في الشهر |
| اختبار معيار: | UL817 | تحميل التيار: | تيار متردد 0 ~ 40 أمبير |
|---|---|---|---|
| تردد الانحناء: | 10 ~ 60 ± 2 مرة / دقيقة | زاوية الانحناء: | 10 ~ 180 ± 2 |
| موقف الاختبار: | 6 | عدادات: | 7 |
| Weight: | 50g, 100g, 200g, 300g, 500g(each of 6) | Dimension of swing testing equipment: | 850×600×810mm |
| Dimension of load cabinet: | 600×600× 1610mm | مزود الطاقة: | AC 220V 50Hz |
Product description:

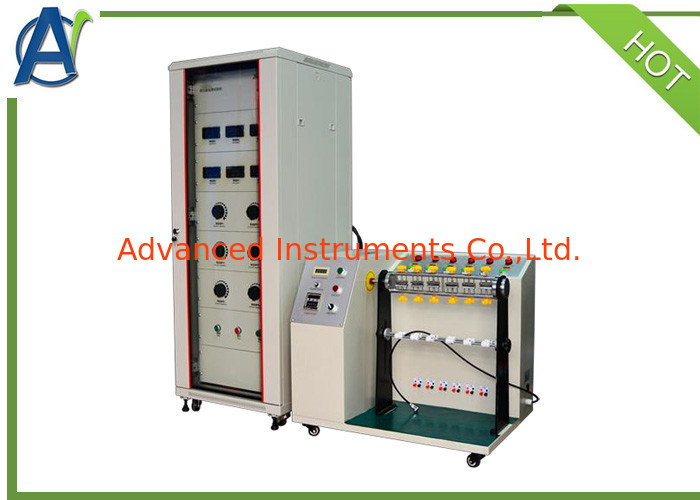

Wire Swing Testing Equipment is used for non-rewirable plug wires, household appliances wires and similar electrical appliances wires bending and load tests. Test method is to fix the specimen in the grip, and add a certain load, the grip swing around during the test, after a certain number of times, view the disconnection rate; or when it is not energized, check its total number of swing.
Standard:
• UL817-2009
Technical parameters:
• Load current: AC 0~40A, continuously adjustable
• Bending frequency: 10-60±2 times/min adjustable
• Bending angle: 10 ~ 180±2 angle, adjustable
• Test position: 6
• Bending times: 7 counters in total, one of them is the is total bending counter, 0-999999 times, pesettable, the rest six are test station counters, which are used for counting the bending times from the beginning of the test until the specimen is broken
• Weight: 50g, 100g, 200g, 300g, 500g(each of 6)
Specifications:
• Swing Testing Equipment dimensions: 850×600×810mm;
• Load cabinet dimensions: 600×600× 1610mm
• Power supply: AC 220V 50Hz
