| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO |
| Model Number: | AIBXW-16 |
| Minimum Order Quantity: | 1 SET Bending Test Tool |
|---|---|
| الأسعار: | قابل للتفاوض |
| Packaging Details: | One Plywood case for IEC60851-3 Bending Test Tool |
| وقت التسليم: | 90 يوما |
| شروط الدفع: | Western Union ، T/T ، L/C |
| القدرة على العرض: | 10 مجموعات/شهر |
| اختبار معيار: | GB / T4074.3-2008 ، IEC60851-3 | قطر شفة: | φ260mm أو φ370mm |
|---|---|---|---|
| Length of bending and rotating arm: | 350 or 400mm | لون: | أزرق |
| عرض: | قاد | Rotation angle of rotating arm: | >180° |
| Quantity of Pagoda bar: | 3 | Diameter of pagoda bar: | φ4~φ60mm |
| Quantity of Round bar: | 88 types | Diameter of round bar: | φ4~φ80mm |
Performance Characteristics
1.Executive standard: GB/T4074.3-2008,IEC60851-3;

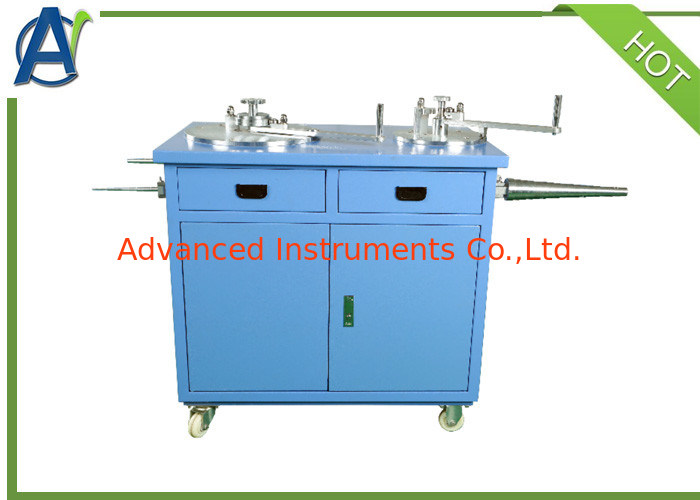

2.This Bending Test Tool is applicable to the bending test of various enameled flat wires, paper wrapped flat wires, glass fiber wrapped flat wires, film wrapped wires and other electromagnetic wires with a wide edge of less than or equal to 16mm, as well as the corresponding copper and aluminum flat wires.
Major Technical Parameters
| Bending host machine | 1# machine | 2# machine |
| Diameter of flange | φ260mm | φ370mm |
| Length of bending and rotating arm | 350mm | 400mm |
| Rotation angle of rotating arm | >180° | |
| Number of test bar and diameter range | Pagoda bar: 3, φ4~φ60mm Round bar (standard times of diameter) 88 types, φ4~φ80mm |
|
Note: For round bars with non-standard diameter, they can be customized according to users' needs
