Performance Characteristics
1.Executive standard: GB/T4074.3-2008/IEC60851-3; Inspection standard: JB/T4279.9-2008

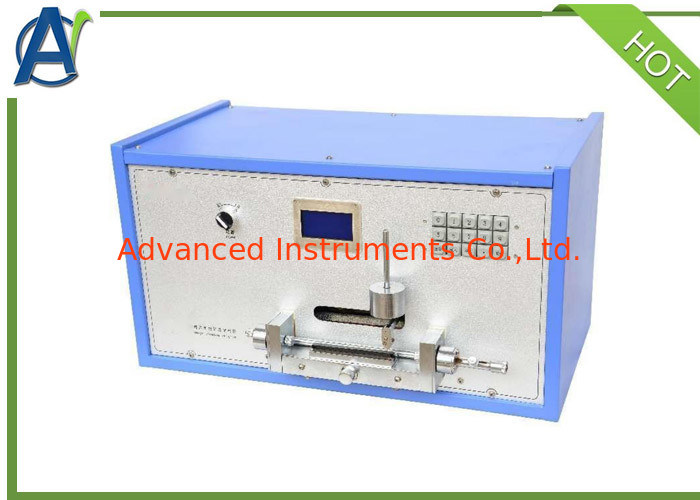

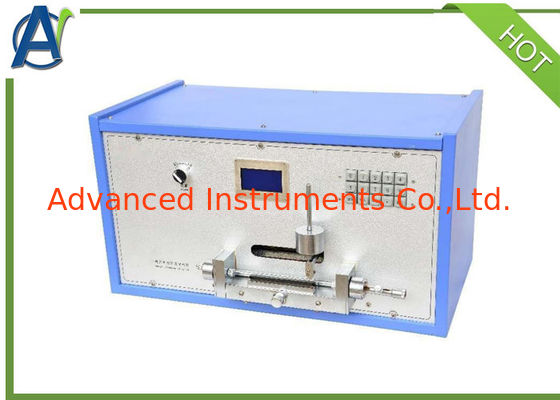

2.This Resistance to Abrasion Test Tool is used to measure the film scrap resistance of enameled round wires with nominal conductor diameter above 0.250mm;
3.Application of SCM control allows for fast operation and strong anti-interference capacity;
4.This Resistance to Abrasion Test Tool can automatically complete the whole test process and work out the average of scraping forces obtained in three times;
5.Sample support table allows for parallel rise and fall, maintaining close contact between the entire plane with sample;
6.As driven by precision linear rail, scraper is free from shake during movement;
7.When film is scratched, painting scraper would automatically stop scraping, with exposed conductor of sample<3mm;
8.Chinese/English LCD displays test operating procedure and test results;
Major Technical Parameters
| Displacement distance of painting scraper |
>100mm |
| Movement speed of painting scraper |
400±40mm/min |
| Diameter of scraper |
0.23±0.01mm |
| Test voltage |
DC6.5±0.5V |
| Short-circuit current |
20±0.5mA |
| Scraping force error |
<±5% |
| Input power |
AC220V±10% 50Hz |
| Power consumption |
<150W |
| Overall dimensions |
L×W×H 640×350×355mm |
| Weight |
45kg
|
