| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO |
| رقم الموديل: | فت |
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | حالة الخشب الرقائقي |
| وقت التسليم: | 60 يومًا |
| شروط الدفع: | Western Union ، T/T ، L/C |
| القدرة على العرض: | 20 مجموعات شهريا |
| Test standard: | ISO 6941,ISO 15025,95/28/EC | إمدادات الغاز: | البروبان والهواء المضغوط |
|---|---|---|---|
| وزن: | 36 كجم | ضمان: | 1 سنة |
| مقاس: | 410 مم (عرض) × 900 مم (ارتفاع) × 380 مم (عمق) | Power supply: | 230 Volts AC 50Hz |
Vertical Flame Tester is suitable for the measurement of limited flame spread properties of Protective clothing.. A defined flame from a specified burner is applied for 10 s to the surface or the bottom edge of textile specimens which are vertically oriented.
The vertical flame test apparatus is designed and manufactured according to ISO 15025 standards.
The flame test tnstrument can be updated to meet the requirement of ISO6941,ISO 6940 etc by using different specimen holders.
The apparatus consists of mounting frame, gas burner, test specimen holder with Supporting pins.
The angle of the burner can be pre-setted and adjusted automatically.
Flame application time can be pre-setted and operate automatically.
Afterflame time and afterglow time recorded by LCD screen.
Installation requirements
| Electrical | 230 Volts AC 50Hz. |
| Ambient Temperature | Operating 25±5℃ |
| Dimensions | 4410mm(W) X 900mm(H) X 380mm(D) |
| Weight | 36KG |
| Applicable standards | ASTM D2863,ISO 4589-2,NES 714 |
| Gas | Propane and air compressed air |

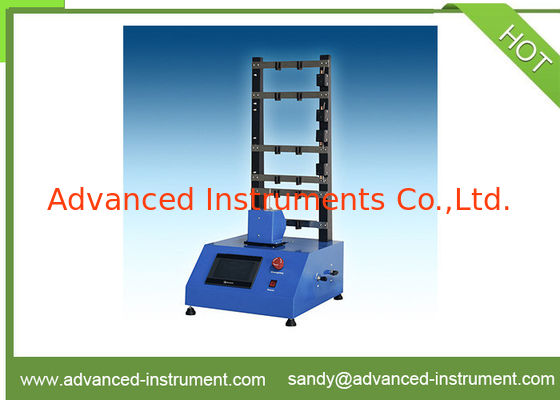

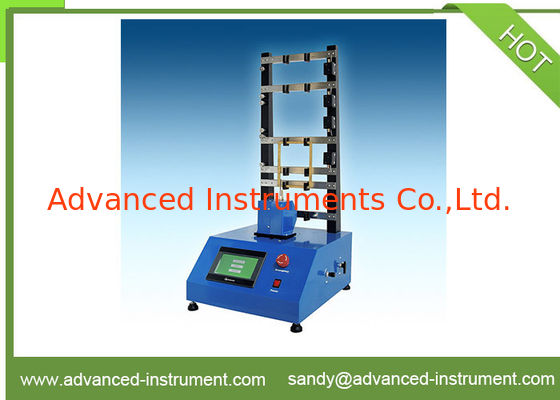

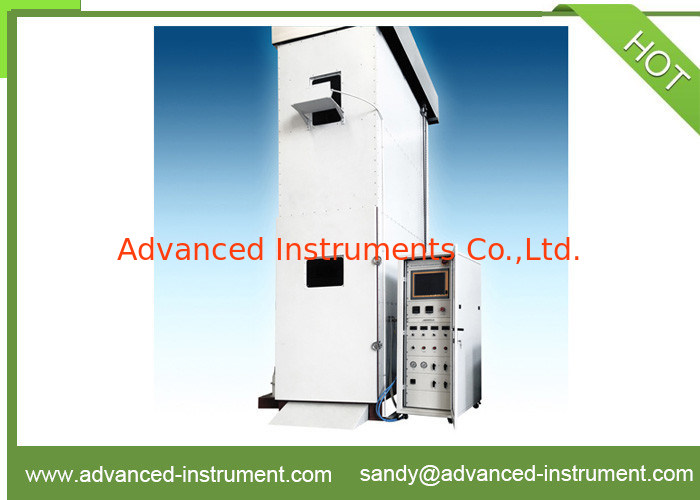

Photos of Protective Clothing Vertical Flame Test Tnstrument
