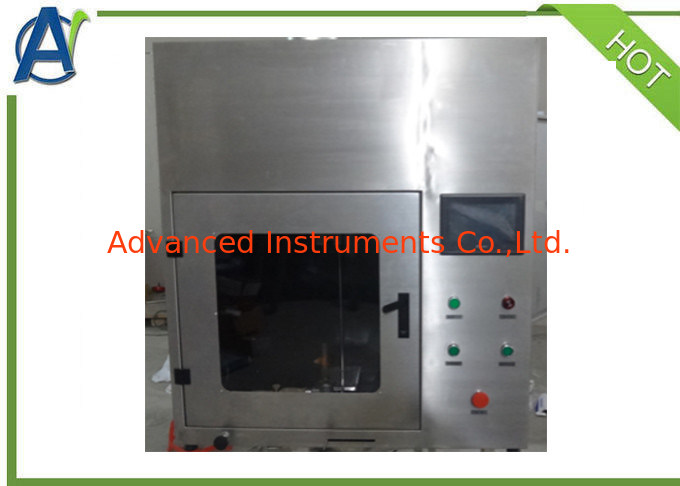

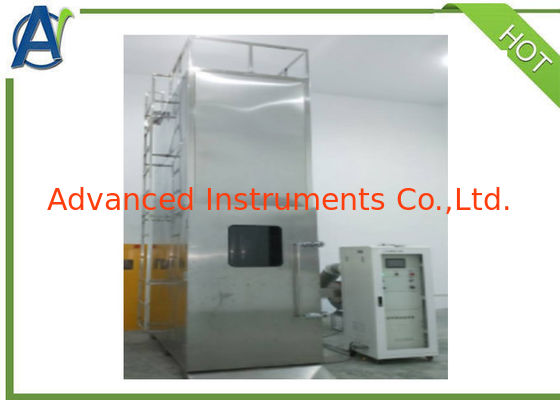

Product introduction
The ASTP 5007 Flame Test Instrumentis designed and developed according to ASTP5007-2006, and shares the same control system with the alcohol burner combustion tester. Add gas control system and gas circuit to save cost for users.
1.Features of box and fixture
1.1 Chamber size: 535mm long x 535mm wide x 535mm high;
1.2. Paint baking treatment of box; The interior is baked with black paint (standard requirements) for corrosion resistance;
1.3 Air inlet and outlet with a diameter of 216 mm are set on the left and right sides of the box; The air inlet is equipped with a blower to control the wind speed from 0 to 300 ft/min within 8.55 ± 15.
1.4 Large glass observation window, beautiful and generous; It is convenient to observe the burning state of the sample;
1.5. The advanced industrial appearance design and test operation shall consider ergonomic design to facilitate the access to the sample, burner pull rod design and operation;
1.6. All fixtures: made of 304 stainless steel; Beautiful and corrosion resistant; The fixture is designed for horizontal combustion and vertical combustion; Convenient space for operation;
1.7 304 stainless steel flame height scale;
1.8 Stainless steel ruler 0.5mm accuracy;
1.9 The top of the test box is equipped with an anemometer to calibrate the wind speed generated by the blower in the box;
1.10 The test chamber shares a set of test system with the alcohol burner combustion tester, which can save costs to the greatest extent for customers;
1.11. The ASTP 5007 Flame Test Instrumentis equipped with anemometer
2.Burner and gas control
2.1 Bunsen burner imported from the United States, with barrel length of 100mm ± 10mm and inner diameter of 11mm; Fully meet the requirements of IEC60695-11-4 burner;
2.2 The burner itself can adjust the flow and air intake;
2.3.The ASTP 5007 Flame Test Instrumentis equipped with imported flowmeter and precision needle valve to accurately control the flow of combustion gas;
2.4 Imported brand high-precision pressure regulating valve and pressure gauge 0~0.4Mpa;
3.Microcomputer control system
3.1 Touch screen of programmable controller to realize control/detection calculation/data display;
3.2 Pulse high-voltage electronic automatic ignition;
3.3 The timing button cooperates with PLC to automatically record and store the burning time;
3.4 It is unnecessary to hold a stopwatch or manuscript for timing; The test time system automatically records and generates the test report;
3.5 The test time and heating time can be set on the touch screen. Meet the requirements of various test standards;
3.6 The automatic timer device can record the test time and store it in the system, and the report can be queried;
3.7 The top shall be equipped with smoke exhaust fan device, and exhaust gas generated by combustion shall be discharged after the test; Note: The customer shall provide smoke exhaust pipe and gas;
4,.Attached accessories
4.1 304 stainless steel flame height gauge;
4.2 Two gas pipe clamps
5. Electrical Requirement
5.1 Voltage: 220V, 50/60Hz;
5.2 The socket has grounding terminal;
5.3 Methane or propane gas;provided by the customer.
