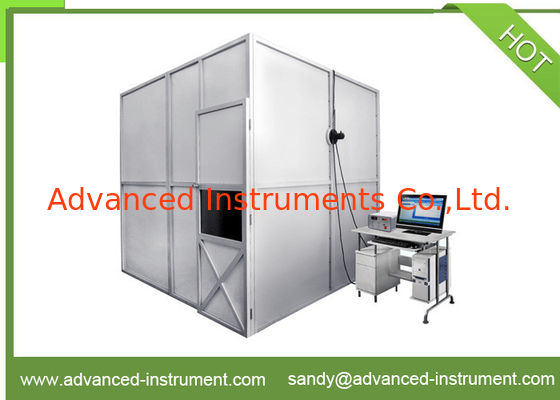

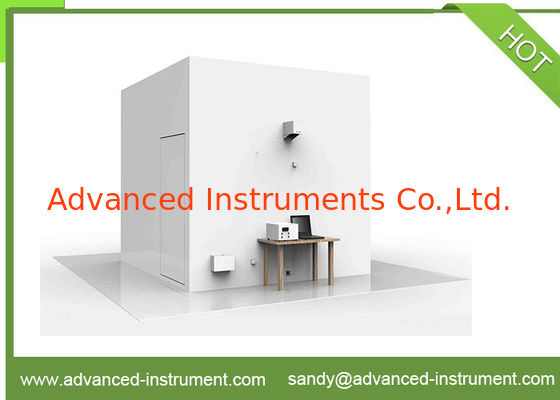

3 Meter Cube Smoke Density Tester

INTRODUCTION

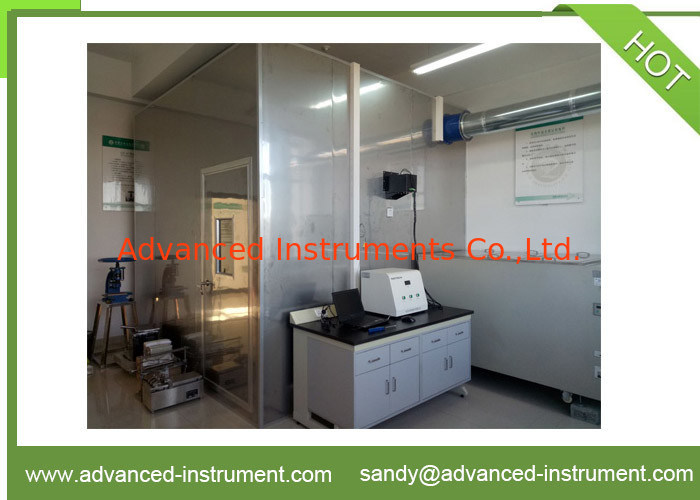

3 Metre Cube Smoke Density Apparatus is used formeasuring the emission when the cable or optical cable is placed horizontally underthedefinite firecondition. The equipment comprises a cubic enclosure and a photometric system.
The specified standard fire source (ethanol 90±1%, methanol 4±1% and distilled water 6±1%) 1L±0.01L is burned.

IEC 61034 - 1 & 2 Measurement of Smoke density of cables burning under defined condition
BS 6853 Code of practice for fire precautions in design and construction of passenger carrying trains​

FEATURE

• Chamber internal size is 3,000mm(W) × 3,000mm(D) × 3,000mm(H).

• ​Its configured with a door with test glass windows and in both faces of the opposite side theres a sealed transparent window (minimum 100mmX100mm) .

• Support system to allow separate fitting of Light Source and Photocell in the outer wall.

• ​The Light Source is Dedolight Classic Series Tungsten with 100W.

• ​The Dedolight Tungsten power supply is 12V DC.

• ​Velocity of light : 2000 lm~3000 lm, and color temperature : 2800K~3200K.

• ​The Receptor Photocell is silicone type and has a spectrum reaction conform to Photopic Observer (similar to a human eye) of the International Commission on Illumination (CIE).

• Supplied with customised extraction facilities and all instrumentation, fans, stands and sample mounting frames.

• ​Software shows testing results including the inner chamber temperature, light transmition etc.
