| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO |
| Model Number: | AIC-6049 |
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | لوح صلب |
| وقت التسليم: | 20 يومًا |
| شروط الدفع: | L/C ، T/T ، Western Union |
| Test Standard: | IEC 60811-1-4 clause 8 | ارتفاع التأثير: | 100 مم |
|---|---|---|---|
| Impact diameter: | 20mm | Radian of impact head: | 300mm |
| Dimension: | 37×15×44cm | وزن: | 23 كجم |
Application

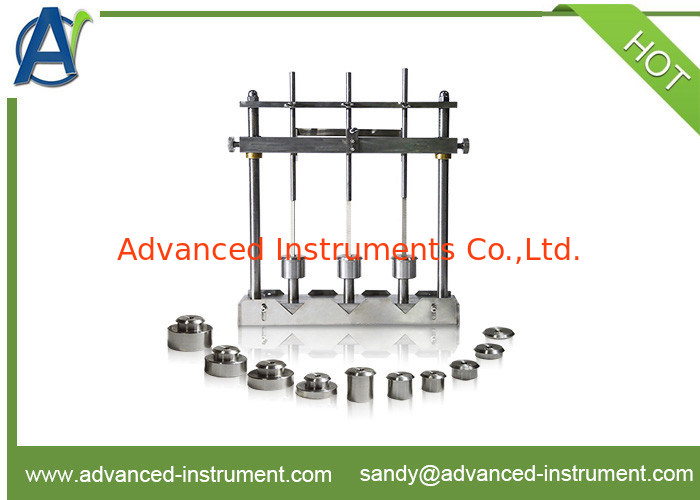

When using this impact test equipment,it should be placed in low temperature chamber with specimen.After cooling,the weight with specified weight drops from 100mm high above and impact the specimen,then observe the damage of inner and outer margins of isolation and sheath.
This equipment should be used with AIC-6034 low temperature test chamber.
Reference standards:
● GB2951.14-2008
● IEC60811-1-4:1985
Main Specifications:
| 1 | Impact height | 100mm |
| 2 | Impact diameter | 20mm |
| 3 | Radian of impact head | 300mm |
| 4 | Guiding rod of impact hammer | Ф10mm,length 8.6cm,equilateral triangle |
| 5 | Weights | 100g,200g,300g,400g,500g,600g,750g,1000g,1250g,1500g,totally 10 pcs/group |
| 6 | Base weight of impact device | 10KG |
| 7 | Height of base | 40mm |
| 8 | Dimension | 37×15×44cm |
| 9 | Weight | 23KG |
