| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO |
| Model Number: | AIC-6216 |
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | لوح صلب |
| وقت التسليم: | 20 يومًا |
| شروط الدفع: | L/C ، T/T ، Western Union |
| Test Standard: | IEC 60811-1-4 clause 8 | Maximum elongation: | 220mm |
|---|---|---|---|
| Elongation speed: | （25±5）mm/min | Dimension: | 420L*290W*320H(mm) |
| مزود الطاقة: | تيار متردد 220 (±10%) فولت/50 هرتز | استهلاك الطاقة: | 400W |
Application

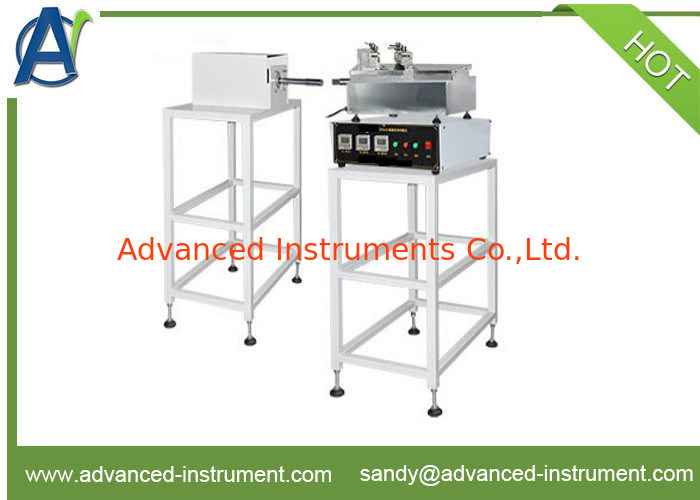

It is suitable to determine elongation performance of insulation sheath under low temperature,such as wire,cables,rubber,plastic.This elongation test equipment need to use with low temperature test chamber.
Reference standards
● GB2951.14-2008,8.3&8.4
● IEC60811-1-4:1985
Main specifications
| 1 | Dimension | 420L*290W*320H(mm) |
| 2 | Minimum using temperature | -40℃ |
| 3 | Maximum elongation(displacement distance) | 220mm |
| 4 | Specification of specimen | matched to dumbbeel test piece I and II,that is Fig.3 and 4 in GB/T2951.14-2008. |
| 5 | Clamp | non self-tightening type,6 clamps totally,can measure 3 samples simultaneously |
| 6 | Distance between left and right clamp | 22 or 30mm adjustable |
| 7 | Elongation speed | (25±5)mm/min |
| 8 | Elongation accuracy | ±0.5% |
| 9 | Elongation display | digital display,automatically calculate elongation length.All three counters are controlled independently,and every clamp group have function of stopping for breakage.When one sample group is broken,the corresponding counter will stop calculating and record elongation length,and another two groups still work normally.When all three sample groups are broken,the machine will stop automatically. |
| 10 | Power supply | AC220(±10%)V/50HZ |
| 11 | Power consumption | 400W |
| 12 | Driving system | Motor driving AC220V 400W |
Structure of Equipment
Assembly and Material
Control system
