| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO |
| Model Number: | AIC-6046A |
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | لوح صلب |
| وقت التسليم: | 20 يومًا |
| شروط الدفع: | L/C ، T/T ، Western Union |
| Test Standard: | IEC60068-2-1&2 | سعة: | 150L |
|---|---|---|---|
| Test chamber: | (W)600*(H)500*(D)500mm³ | Temperature range: | -40℃ ～ 150℃ |
| عرض: | شاشة تعمل باللمس | لون: | فضي |
Reference standards:
● GB 2423.1-89 (IEC60068-2-1)
● GB 2423.2-89 (IEC60068-2-2)

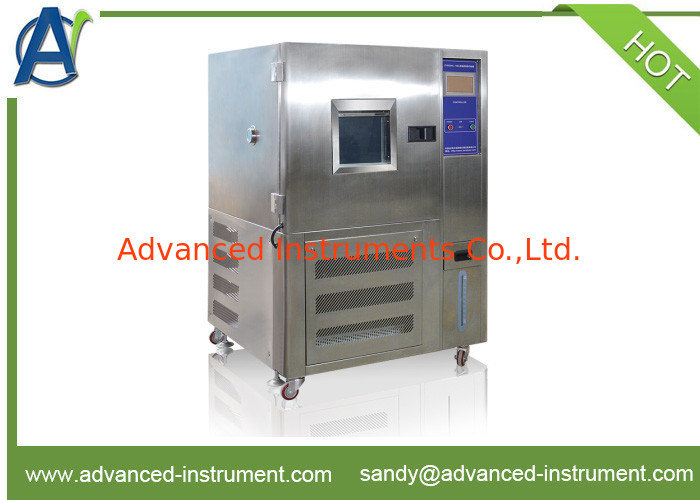

Main specifications:
1.Size:Test chamber:(W)600*(H)500*(D)500mm³,(this size can be changed according user’s requirement,but price maybe different)
Case:(W)1400*(H)1700*(D)1250mm³
2.Temperature range:-40℃ ～ 150℃(this temperature range can be changed,but price maybe different)
3.Temperature fluctuation:±0.5℃
4.Temperature deviation:≤±2℃
5.Temperature rising time:about 4℃/min(No-load Nonlinearity)
6.Cooling time:about 1℃/min(No-load Nonlinearity)
7.Temperature controlling range:
Structure and Material
| 1 | Material of inner tank | stainless steel plate (SUS #304, 1.0mm thickness) |
| 2 | Material or outer tank | stainless steel treated by atomization |
| 3 | Thermal material | hard Polyurethane form and glass wool |
| 4 | Air supply circulation system |
(1)90W motor (2)Lengthened axis (3)SIROCCO FAN |
| 5 | Door |
single door and window,left open,handle on right
|
Refrigeration system:
Control system
Originally imported from South Korea,7 inches LCD touch screen,picture dialogue data input,temperature and humidity are programmable controlled simultaneously,curve display,set value/display value curve.U disk can export recording data of temperature and humidity directly and an display multi-alarms. When faults appear,it can be displayed,removed and corrected on screen.
