| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO |
| Model Number: | AIC-6034A |
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | لوح صلب |
| وقت التسليم: | 20 يومًا |
| شروط الدفع: | L/C ، T/T ، Western Union |
| Test Standard: | IEC60811-1-4 clause 8 | Test group: | two groups |
|---|---|---|---|
| Dimension: | 420L*400W*300H(mm) | Diameter of specimen: | Φ2.5~Φ12.5mm |
| مادة: | SUS304 | لون: | فضي |

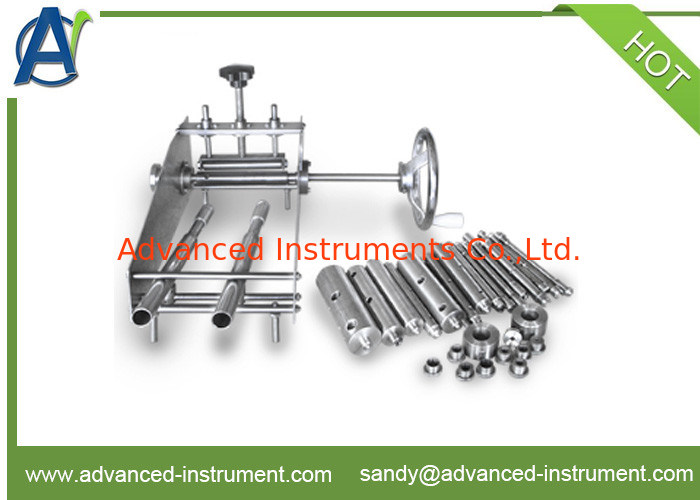

Introduction
It is suitable to examine and test the performance under low temperature for circular insulating core wire under Φ12.5m and Sector Insulated Wire Core which can not make Dumbbell test specimen(Shorter axis of sheath≦20mm flat cable).
Reference standards
● GB2951.14-2008, Sect 8.1&8.2
● IEC60811-1-4:2001
● JB/T4278.11-2011
Technical specifications
| 1 |
Test groups |
two groups |
| 2 |
Dimension |
420L*400W*300H(mm) |
| 3 |
Diameter of specimen |
Φ2.5~Φ12.5mm |
| 4 |
Outlet diameter of guiding tube(mm) |
Φ1.2,Φ2.4,Φ3.0,Φ3.8,Φ4.7,Φ5.9,Φ7.4,Φ9.2,Φ11.5,Φ14.5,totally 10 groups confirms to JB/T4278.11-2011 |
| 5 |
Diameter of winding rod |
Φ4,Φ5,Φ6,Φ7,Φ8,Φ10,Φ12,Φ14,Φ16,Φ18,Φ20,Φ24,Φ28,Φ32,Φ36,Φ40,Φ45,Φ50mm,totally 18 pieces conforms to JB/T4278.11-2011(it can also be customized) |
| 6 |
Winding mode |
adjust speed manually |
| 7 |
Material |
SUS304 |
