| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO |
| رقم الموديل: | باور بوينت-أ |
| Minimum Order Quantity: | 1 set Automatic Pour Point and Solidification Point Measuring Equipment |
|---|---|
| الأسعار: | قابل للتفاوض |
| Packaging Details: | Automatic Pour Point and Solidification Point Measuring Equipment packed in hardboard |
| وقت التسليم: | 30 يوما |
| شروط الدفع: | L/C ، T/T ، Western Union |
| القدرة على العرض: | 20 مجموعات شهريا |
| مزود الطاقة: | AC220V ± 10% 50Hz±1Hz | Test standard: | ASTM D97,GB/T510,GB/T3535 |
|---|---|---|---|
| Total power: | ≤600KW | Measuring range of solidifiation point: | light oil within 5ºC~-70ºC |
| نطاق التحكم في درجة الحرارة: | 25 درجة مئوية إلى 70 درجة مئوية | دقة التحكم في الحرارة: | ± 0.1 ℃ |
| عرض: | شاشة لمسة LCD ملونة 8 بوصة | لون: | أبيض |
| موقف الاختبار: | 2 ثقوب |
Introduction

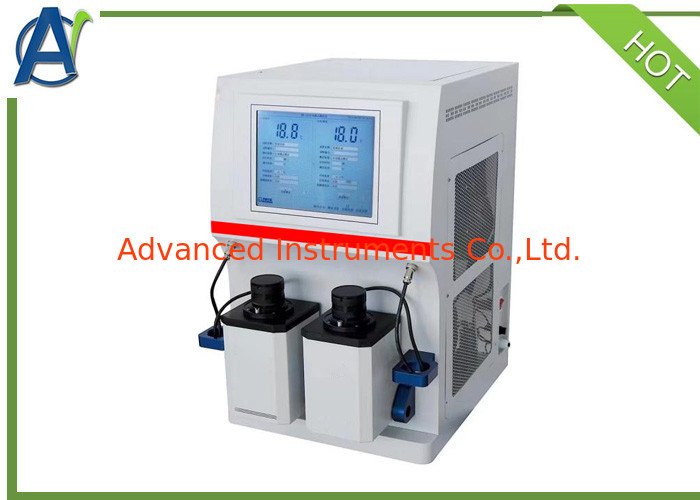

This instrument is a fully Automatic Pour Point and Solidification Point Measuring Equipment controlled by a computer.
User only need to install a glass test tube with a sample into a cold bath, and the instrument will automatically test according to standard requirements.
Main Features
1. The Automatic Pour Point and Solidification Point Tester mainly consists of refrigeration system, control system, measurement system, etc.
2. The refrigeration system consists of a two-stage refrigeration unit, using internationally advanced compressor cascade refrigeration technology, which has the advantages of fast cooling speed and low cooling temperature.
3. The control system mainly consists of a heater, sensors, cold trap, and temperature control circuit, which has the advantages of fast response speed and high temperature control accuracy.
4. Measurement system is composed of test tubes, test sleeves, photoelectric detection devices, tilt racks, etc. The tilt frame can tilt 45 degrees according to the national standard requirements and has a detection result display prompt function. This device can reduce experimental errors and improve the accuracy of the experiment.
Technical Specifications
| 1. | Applicable standard | ASTM D97,GB/T510,GB/T3535 |
| 2 | Solidification measuring range | light oil within 5ºC~-70ºC |
| 3 | Resolution | 0.1ºC |
| 4 | Temperature controlling range | 25ºC~-70ºC |
| 5 | Temperature controlling accuracy | ±0.1ºC |
| 6 | Test position | 2 holes |
| 7 | Refrigeration system | two-stage cascade refrigeration |
| 8 | Display method | 8-inch color LCD touch screen |
| 9 | Printing | thermal printer |
| 10 | Ambient temperature | 5~40ºC |
| 11 | Related humidity | ≤80% |
| 12 | Power supply | AC220V ±10% 50Hz±1Hz |
| 13 | Power consumption | ≤600W |
