| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO |
| Model Number: | AIC-665 |
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | لوح صلب |
| وقت التسليم: | 50 يوما |
| شروط الدفع: | Western Union ، T/T ، L/C |
| القدرة على العرض: | 50 مجموعة في الشهر |
| Test standard: | GB/T11143, ASTM D665, ISO7120, DIN51585, IP135, NFT60151 | وحدة تحكم درجة الحرارة: | PID المستورد |
|---|---|---|---|
| Temperature control accuracy: | 60℃±0.1ºC | طريقة التدفئة: | أنبوب التدفئة الكهربائية |
| عرض: | قاد | Working postion: | 4 or 6 |
| طريقة التوقيت: | مؤقت رقمي | مزود الطاقة: | 220 فولت ، 50 هرتز |
| لون: | أبيض | لغة: | إنجليزي |
Introduction:

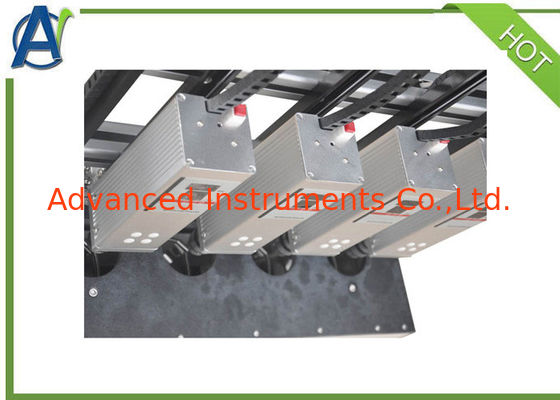

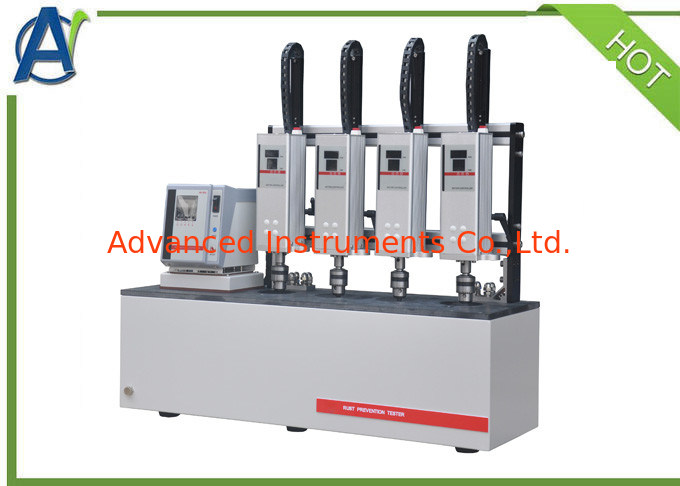

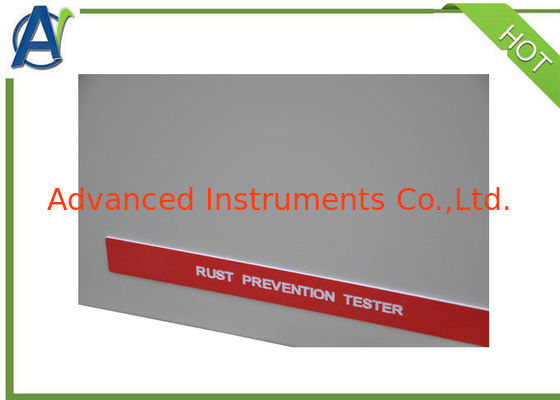

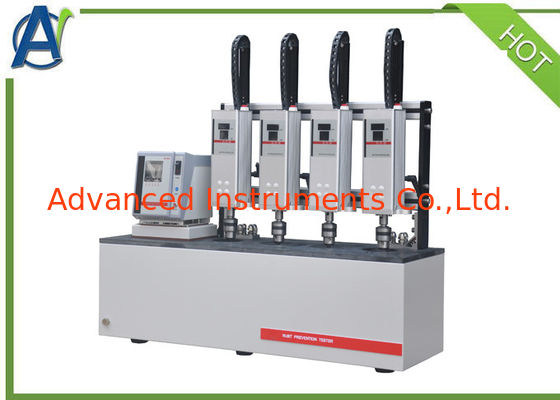

This Rust Prevention Characteristics Test Instrument is mainly used to test the rust preventing characteristics of mineral oil with inhibitor, especially the gas turbine oil when mixed with water.
The Rust Prevention Characteristics Test Instrument is also suitable for detecting other oil products, such as hydraulic oil, circulating oil and liquid with specific gravity of water.
The operating principle is: mix a certain amount of sample with distilled water or synthetic seawater, immerse all cylindrical sample steel rods in it, and stir at a certain temperature. After the test period (usually 2 weeks), observe the corrosion trace and degree of the steel bar of the sample.
Main features :
1. The Rust Prevention Characteristics Test Instrument has a separate mute mixer, one or more tests can be selected at will;
2. Each mixer controls the speed and test time separately, and stops automatically after the test;
3. Sputter type multi channel liquid circulator can ensure the temperature uniformity of each point;
4. The Rust Prevention Characteristics Test Instrument has sliding automatic positioning device, mixing blades do not need to be adjusted;
5. Safety protection device to prevent low liquid level;
6. The Rust Prevention Characteristics Test Instrument has 4 working positions, 6 units is also expandable.
Specifications
| Test standard | GB/T11143, ASTM D665, ISO7120, DIN51585, IP135, NFT60151 |
| Temp.control method | imported PID temperature controller |
| Temp.control accuracy | 60±0.1ºC |
| Heating method | electrical heating tube |
| Working position | 4 units(6 units is optional) |
| Timing method | Digital timer |
