| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO |
| رقم الموديل: | AIC-5001 |
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | لوح صلب |
| وقت التسليم: | 35 يومًا |
| شروط الدفع: | Western Union ، T/T ، L/C |
| القدرة على العرض: | 50 مجموعة في الشهر |
| اختبار معيار: | ASTM D5001 | مزود الطاقة: | 230V AC ، مرحلة واحدة ، 5A |
|---|---|---|---|
| حجم العينة: | 50 ± 1.0 مل | عرض: | رقمي |
| يتحكم: | الكمبيوتر الشخصي | درجة حرارة العينة: | 25 ± 1 درجة مئوية |
| Air flow rate into the sample: | 0.5 L/min | Air flow rate on sample surface: | 3.3 L/min |
| Sample pretreatment time: | 15 mins | سرعة الطبل: | 240 ± 0.5 لفة في الدقيقة |
| وقت الاختبار: | 30 دقيقة | خدمة تصنيع المعدات الأصلية: | متاح |
Product Introduction:

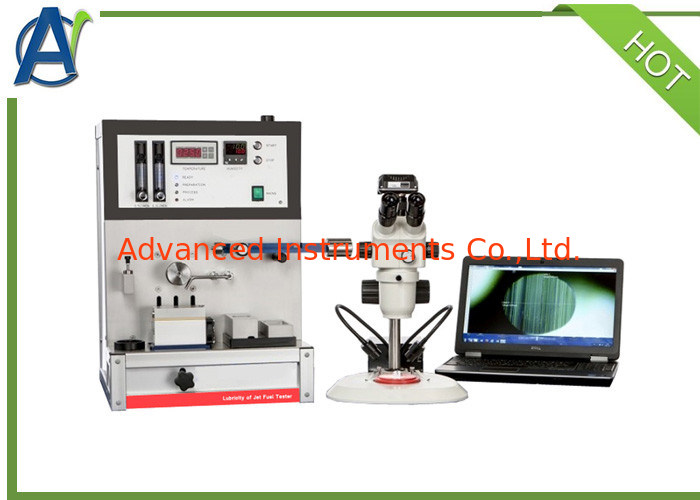

The Ball-on-Cylinder Lubricity Evaluator (BOCLE) Test Apparatus is used to measure wear condition of aviation turbine fuel on friction steel surface. Test principle: put the test sample into the test oil pool, keep the relative humidity of the air in the pool at 10%, fix a non rotating steel ball in the vertically installed chuck, make it face an axially installed steel ring, and add load. The test cylinder is partially immersed in the oil pool and rotated at a fixed speed. In this way, the cylinder can be kept in a wet condition and the sample can be continuously transported to the ball / ring interface. The diameter of the wear mark on the test ball is a measure of the lubricity of the sample.
Main features:
1.The Ball-on-Cylinder Lubricity Evaluator (BOCLE) Test Apparatus dopts colorful LCD display, which can visually operate and display the whole process of the test;
2.Simple interface: computer controls all instrument functions;
3.The standard ASTM D 5001 test program is preloaded into the ABT microprocessor controller: the operator installs the cleaned test piece, adds the fuel sample and presses the "start test" button;
4.The Ball-on-Cylinder Lubricity Evaluator (BOCLE) Test Apparatus can automatically control test sequence: the measurement process does not require operator intervention;
5.The automatic flow controller controls the humidity and dry air: the operator is not required to control and regulate the humidity and air flow;
6.Interchangeable humidity and temperature probes: humidity and temperature measurement do not need to be recalibrated, just replace the combined relative humidity and temperature probes with the exchange pre calibration unit;
7.Heating and cooling system: Peltier heating and cooling system;
8.Digital microscope is equipped with image acquisition system and software;
9.All parameters is displayed directly: motor speed, test time, fuel temperature, air temperature, humidity data, etc;
10.The Ball-on-Cylinder Lubricity Evaluator (BOCLE) Test Apparatus is supplied with ultrasonic cleaner.
Technical Parameters
| 1 | Sample volume | 50 ± 1.0mL |
| 2 | Sample temperature | 25 ± 1 ºC |
| 3 | Fluid ambient temperature | +5.0 ~ +35.00 ºC |
| 4 | Air with adjusted temperature and humidity | the relative humidity at 25 ± 1 ºC is 10 ± 0.2% |
| 5 | Air flow rate into the sample | 0.5 L/min |
| 6 | Air flow rate on sample surface | 3.3 L/min |
| 7 | Sample pretreatment time | 15 min |
| 8 | Air flow rate on sample surface during measurement | 3.8 L/min |
| 9 | Applied load | 1000g (500g weight) (± 1g) |
| 10 | Drum speed | 240 ± 0.5 RPM |
| 11 | Test time | 30 ± 0.1 min |
| 12 | Data acquisition and analysis | motor speed, fuel temperature, air temperature, humidity and test time |
| 13 | Test ring | dia 49.25 to 49.10, THK 13.11 to 13 (SAE 8720 steel, hardness 58 to 62 RC, surface finish RQ 0.51 to 0.71 micron) |
| 14 | Test ball | 12.7mm (0.5 inch) (AISI 52100 steel, hardness 64 to 66 RC) |
| 15 | Power supply | 230V AC, single phase, 5A |
