| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO |
| رقم الموديل: | DVI |
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | حالة الخشب الرقائقي |
| وقت التسليم: | 15 يومًا |
| شروط الدفع: | Western Union ، T/T ، L/C |
| القدرة على العرض: | 50 مجموعة في الشهر |
| Test standard: | ASTM D445,ASTM D1298,ASTM D2270 | Function: | determines the density,kinematic viscosity and viscosity index |
|---|---|---|---|
| موقف العمل: | 4 وحدات | Display: | 5.6 inch colored LCD |
| مزود الطاقة: | تيار متردد (220 ± 10٪) فولت ، 50 هرتز ± 1 هرتز | استهلاك الطاقة: | 1500W |
| Dimension: | 620mm×510mm×600mm3 | لون: | أسود |
| لغة: | إنجليزي | وزن: | 41.5 كجم |
Summary

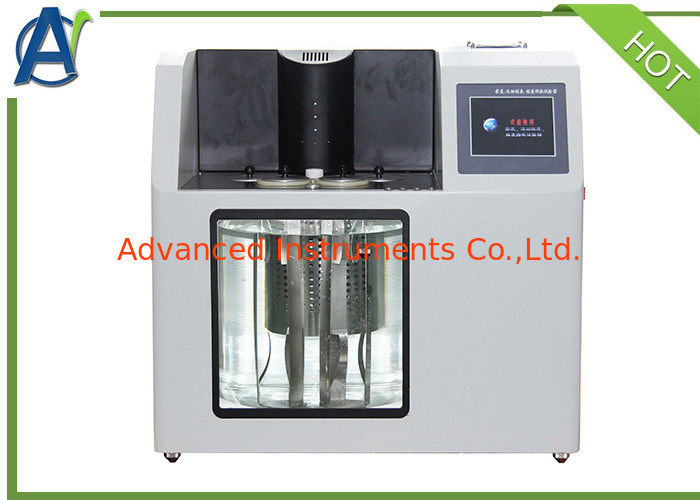

This Multifunctional Density,Kinematic Viscosity,Viscosity Index Test Instrument is designed and made as per national standard of People's Republic of China GB/T 1884, GB/T 265 and GB/T 1995. It can determine the density(liquid petroleum products) as per GB/T 1884, the kinematic viscosity(Newtonian liquids) as per GB/T 265 and viscosity index(Lubricating oils) as per GB/T 1995.
I.Main features
1. The Multifunctional Density,Kinematic Viscosity,Viscosity Index Test Instrument can determine the density of crude oil and liquid petroleum products, kinematic viscosity of liquid petroleum products and viscosity index of lubricating oils.
2. Microprocessor and colored LCD technology. English bilingual menu. Light-touch screen. Easy to operate.
3. It can test 4 samples at a time. Two for kinematic viscosity test and another two for density test. Or 4 kinematic viscosity tests. The parameters such as temperature, time, coefficient of capillary viscometer tube and density value can be inputted in or displayed on the light-touch screen.
4. New-type temperature sensor. The temperature resolution is 0.01ºC. Temperature control precision is ±0.04ºC.
5. The internal semiconductor refrigeration device is installed, and the refrigeration device will start automatically when the test temperature is set to 20 ºC~35 ºC.
6. This Multifunctional Density,Kinematic Viscosity,Viscosity Index Test Instrument can save 99 coefficients of capillary viscometer.
II.Technical specification
| 1 | Capacity of bath | Ф300mm×340mm |
| 2 | Temperature range | (20~100)ºC |
| 3 | Resolution | 0.01ºC |
| 4 | Temperature precision | ±0.04ºC |
| 5 | Temperature sensor | PT100 |
| 6 | Timing precision | ±0.01s |
| 7 | Display | 5.6 inch colored LCD |
| 8 | Sample position | 4 units |
| 9 | Power supply | AC(220±10%)V, 50Hz±1Hz |
| 10 | Total power consumption | ≤1500W |
| 11 | Working environment | Ambient temp.:(15~35)ºC;RH<85% |
| 12 | Dimension | 620mm×510mm×600mm3 |
| 13 | Weight | 41.5KG |
