| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO |
| Model Number: | AIC-1831 |
| الحد الأدنى لكمية: | 1 تعيين ASTM D1831 لفة اختبار الاستقرار |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | ASTM D1831 لفة اختبار الاستقرار معبأة في حالة الخشب الرقائقي |
| وقت التسليم: | 20 يومًا |
| شروط الدفع: | Western Union ، T/T ، L/C |
| القدرة على العرض: | 20 مجموعات شهريا |
| اختبار معيار: | ASTM D1831 ، SH/T0122 | Heating mode: | Electric ring |
|---|---|---|---|
| وضع التوقيت: | مؤقت رقمي | سرعة المحرك: | 155 ~ 180 دورة في الدقيقة |
| مزود الطاقة: | AC220V 50Hz | ضمان: | 1 سنة |
| لون: | أبيض | القوة الكلية: | 1000W |
| نطاق التحكم في درجة الحرارة: | 21 ℃ ~ 38 ℃ |

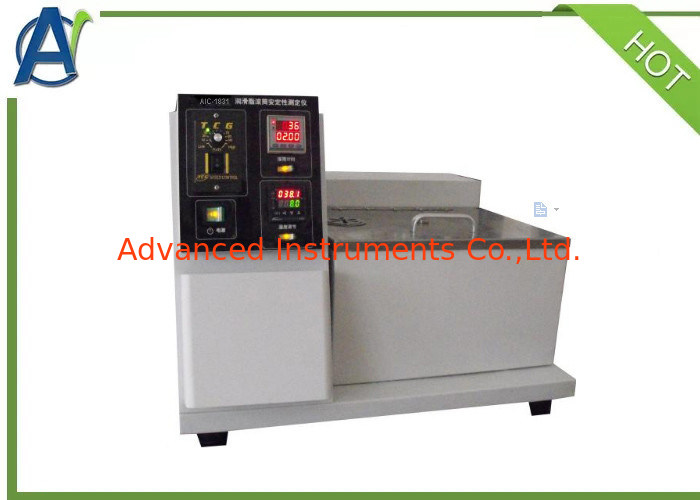

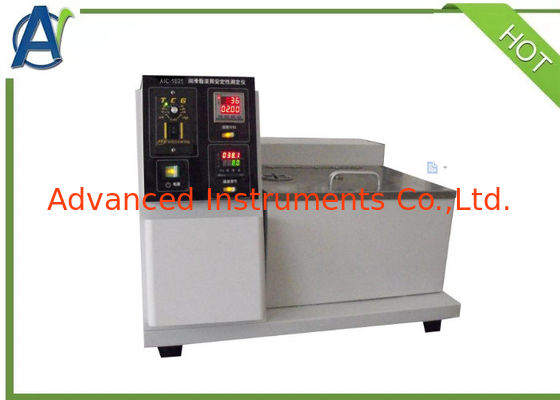

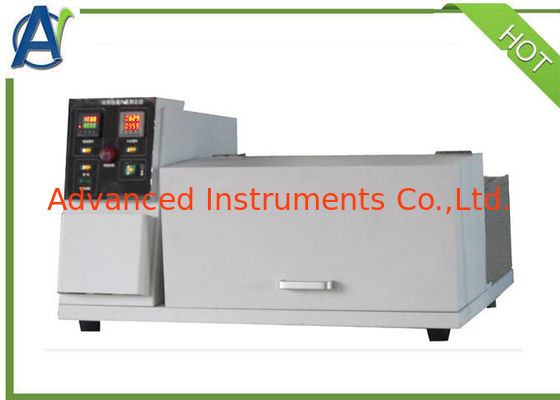

Using a certain amount of sample, at room temperature, after working on a roller testing machine for 2 hours, determine the working penetration of the grease before and after the test.This Roll Stability Tester is suitable for measuring the consistency change of the grease after working on the roller testing machine to judge the mechanical shear stability of the grease.
I. Main Features
◆Stainless steel roller: Φ90×180mm 5kg;
◆The idler wheel has a positioning ring to control the normal operation of the roller;
◆A drive motor is installed below to keep the speed at 155～180r/min;
◆Belt drive roller;
◆Microcomputer thermostat, digital display, accuracy ±5℃ PT100 sensor;
◆Digital timer, recording working time, with wind alarm;
◆Two rollers can be tested at the same time;
◆There is a thermometer hole on the cover of the instrument box for temperature correction.
II.Technical Specifications
| 1 | Applicable standards | ASTM D1831,SH/T0122 |
| 2 | Heating mode | Electric ring |
| 3 | Timing mode | Digital timer |
| 4 | Temperature controlling range | 21℃~38℃ |
| 5 | Motor speed | 155~180RPM |
| 6 | Working units | 2 units |
| 7 | Power supply | AC 220V ,50Hz |
| 8 | Total power | 1000W |
III.Accessories List
| No. | Name | Quantity |
| 1 | Roll Stability Tester | 1 Set |
| 2 | Roller | 2 Sets |
| 3 | Wrench | 2 PCS |
| 4 | Thermometer (0~100℃) | 1 PC |
| 5 | Fuse (20A) | 4 PCS |
| 6 | Sample dish | 15 PCS |
| 7 | Scraper | 1 PC |
| 8 | Manual book | 1 Copy |
