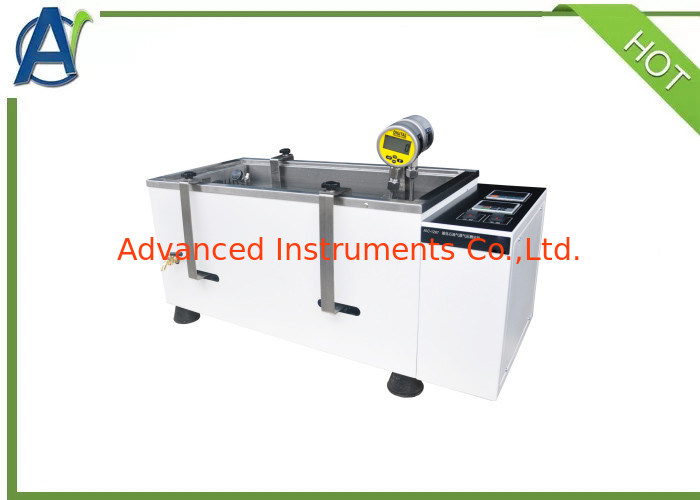

ASTM D1267 LPG Vapour Pressure Tester for Liquefied Petroleum Gas

ASTM D1267 LPG Vapour Pressure Tester for Liquefied Petroleum Gas

    • ASTM D1267 LPG Vapour Pressure Tester for Liquefied Petroleum Gas
    • ASTM D1267 LPG Vapour Pressure Tester for Liquefied Petroleum Gas
    • ASTM D1267 LPG Vapour Pressure Tester for Liquefied Petroleum Gas
  • ASTM D1267 LPG Vapour Pressure Tester for Liquefied Petroleum Gas

    تفاصيل المنتج:

    مكان المنشأ: الصين
    اسم العلامة التجارية: AI
    إصدار الشهادات: ISO
    Model Number: AIC-1267

    شروط الدفع والشحن:

    الحد الأدنى لكمية: 1 مجموعة
    الأسعار: قابل للتفاوض
    تفاصيل التغليف: حالة الخشب الرقائقي
    وقت التسليم: 20 يومًا
    شروط الدفع: Western Union ، T/T ، L/C
    القدرة على العرض: 20 مجموعات شهريا
    ﺎﺘﺼﻟ ﺍﻶﻧ
    مفصلة وصف المنتج
    Test Standard: GB/T6602 ASTM D1267 ISO 256 Temperature control: Import PID digital thermostat
    Temperature controlling accuracy: Ambient~70±0.1℃ Oscillation mode: Automatic horizontal oscillation without manual operation
    Pressure correction: Externally can be connected to a precision pressure regulator, internally equipped with fine-tuning function مزود الطاقة: AC220V / 50 هرتز
    القوة الكلية: 1.5 كيلو واط Dimension: 900*400*460mm
    وزن: 48 كجم ضمان: 1 سنة
    لون: أبيض

    ASTM D1267 LPG Vapour Pressure Tester

    Introduction
    This instrument is mainly suitable for detecting liquefied petroleum gas whose boiling point is higher than 0℃, hydrocarbon volume content is less than 5%, and its vapor pressure is not more than 1550KPA at 37.8℃. When the instrument is used,the cooled sample is filled into the oxygen bomb of the vapor pressure tester, and the oxygen bomb is connected with the gas detector.

    I.Main features
    ◆Imported Omron PID temperature controller, digital continuous display temperature, accuracy 0.1℃
    ◆The instrument is made of cold-rolled steel plate, and the surface is treated with electrostatic spray, which is corrosion-resistant
    and easy to clean.
    ◆Instrument welding adopts butt welding technology, no solder joints, beautiful and generous.
    ◆The instrument adopts imported pressure transmitter with high pressure display accuracy.
    ◆All stainless steel inner tank of water bath to prevent rust.
    ◆Imported quick connector, plug and use, no leakage, easy operation.



    II.Technical specification
    Model
    AIC-1267
    Applicable Standard
    GB/T6602 ASTM D1267 ISO 256
    Temperature control
    Import PID digital thermostat
    Temperature controlling accuracy
    Ambient70±0.1
    Oscillation mode
    Automatic horizontal oscillation without manual operation
    Working units
    2 bombs
    Pressure correction

    Externally can be connected to a precision pressure regulator,
     internally equipped with fine-tuning function
    Power supply
    1.5KW
    Dimension
    900*400*460mm
    Weight
    48KG
    Color White



    II.Accessories list
    No.
    Name
    Quantity
    Unit
    1
    Main unit
    1
    Set
    2
    Fuse 20A
    4
    PCS
    3
    Test bomb
    2
    Set
    4
    User manual
    1
    Copy
    ASTM D1267 LPG Vapour Pressure Tester for Liquefied Petroleum Gas
