| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO |
| Model Number: | VD-R3 |
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | لوح صلب |
| وقت التسليم: | 20 يوم |
| شروط الدفع: | Western Union ، T/T ، L/C |
| القدرة على العرض: | 20 مجموعات شهريا |
| Test standard: | ASTM D1160,GB/T9168 | نطاق القياس: | درجة حرارة الغرفة ~ 400 ℃ |
|---|---|---|---|
| استهلاك الطاقة: | 2200W | Size: | 850×980×500(mm3) |
| مزود الطاقة: | تيار متردد 220 فولت ±10% 50/60 هرتز | Weight: | 850×980×500(mm3) |
| عرض: | شاشات الكريستال السائل | ضمان: | 1 سنة |
| Keyword: | Vacuum Distillation Apparatus |
Decompression Automatic Vacuum Distillation Device
Introduction
This Automatic Vacuum Distillation Apparatus is used to determine the range of boiling points for petroleum products that can be partially or completely vaporized.It adopts MCS-51 series single chip as system core control,color LCDs,English Menu man-machine dialog,guiding operation,fully automatic test process.
The constant temperature and necessary reduced pressure of circulation cooling water and receiving tank need to be set according to test.It can automatically control distillation velocity and constant vapour reduced pressure,temperature of circulating cooling water and receiving tank.
The color LCDs display temperature of distillation vapour,boiling point ,cold trap,circulating cooling water and receiving tank,vapour pressure.After distillation,it can automatically display and print out initial boiling point and corresponding vapour temperature,distilaltion velocity and pressure for each recycling percentage 5,10,20,30,40,50,60,70,80,90,95 and important distillate.
I.Main features
II.Technical specifications
| 1 | Display mode | 6 inches 265 color LCD screen display in English |
| 2 | Measuring range | Room temperature~400℃,resolution:0.1℃ |
| 3 | Temperature detection | Special Platinum resistance sensor Pt100 |
| 4 | Distillation velocity | 2～9mL/min |
| 5 | Temperature control range of Condensing tube | Room temperature～90℃ set at random |
| 6 | Temperature control range of receiving tank | Room temperature～80℃ set at random |
| 7 | Liquid test | Infrared photoelectric detection |
| 8 | Cooling temperature of cold trap | -40℃ |
| 9 | Refrigeration method | Air compressor(Danfoss) |
| 10 | Reduced pressure controlling range |
130Pa～6.7kPa set at random Accuracy:(kPa±0.01)1kPa 1% |
| 11 | Distillation power | 1000W |
| 12 | Furnace cooling | Forced air cooling |
| 13 | Power supply | AC220V 50/60Hz |
| 14 | Total power | 2200W |
| 15 | Overall dimension | 850×980×500(mm) |
| 16 | Working condition | -10℃~+30℃,relative humidity≯70 |
| 17 | Weight | 96KG |

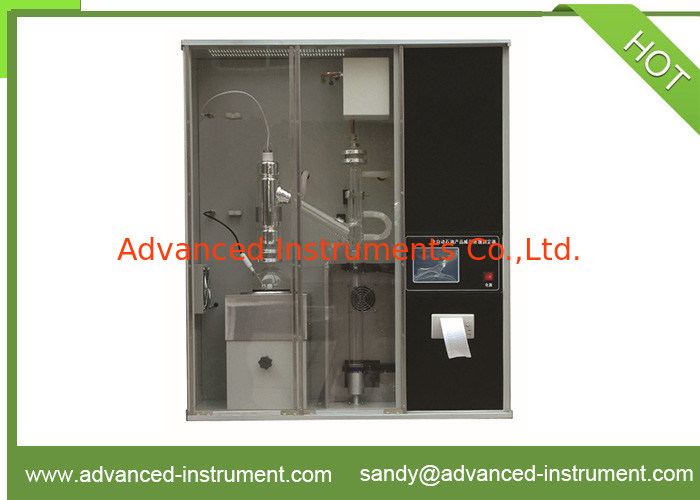

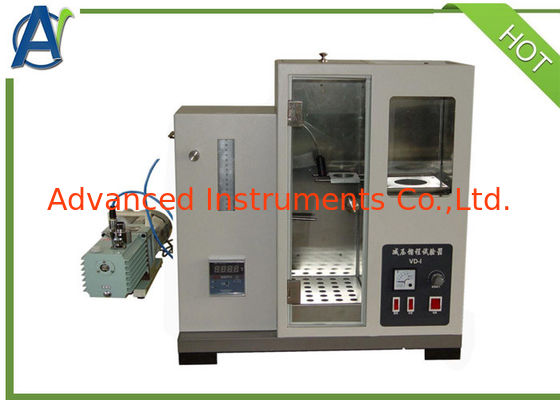

Picture of ASTM D1160 Decompression Automatic Vacuum Distillation Device
