| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO |
| رقم الموديل: | آر تي إس |
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | حالة الخشب الرقائقي |
| وقت التسليم: | 15 يومًا |
| شروط الدفع: | Western Union ، T/T ، L/C |
| القدرة على العرض: | 100 مجموعة في الشهر |
| Power supply: | 380V±10%, three-phase 50Hz/60Hz | Max voltage output: | 0~1000KV |
|---|---|---|---|
| Max output Capacity: | 0~6400KVA | اختبار مدى التردد: | 30 ~ 300 هرتز |
| ضمان: | 1 سنة | Keyword: | High Voltage Resonance Tester |
Introduction
High voltage series resonance tester is applied to testing the insulation ability of insulation materials in power equipment. The frequency of test voltage is adjustable which would lead to series resonance in testing circuit. Both the conductors connected in test circuit in series and the capacitors connected in test circuit in parallel are also adjustable. That makes the resonance testert is widely applied in GIS, Power cable and generator insulation testing.
Technial specifications
| 1 | Max voltage output | 0~1000KV |
| 2 | Max output Capacity | 0~6400KVA |
| 3 | Test frequency range | 30~300HZ |
| 4 | Frequency setting resolution | 0.1HZ |
| 5 | Test voltage waveform | sine wave,waveform deviation factor : ≤1% |
| 6 | Power supply | 380V±10%, three-phase 50Hz/60Hz |
| 7 | Environment condition | Temperature: 0~50℃ |
| 8 | Humidity | ≤ 80%RH |

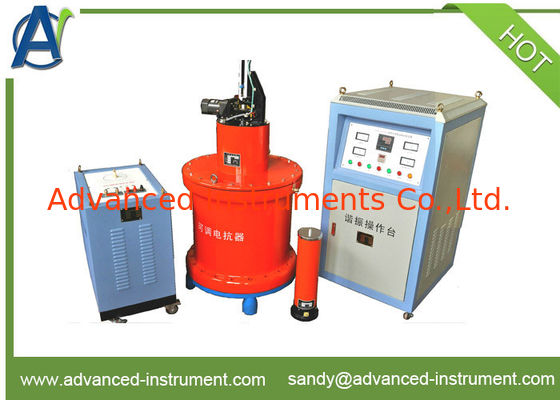

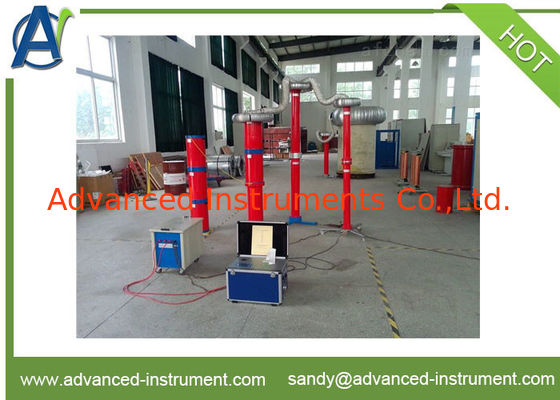

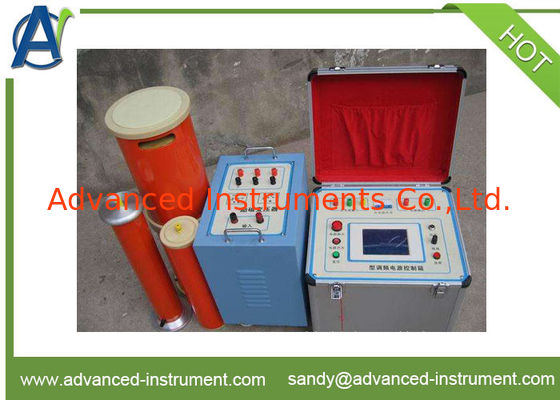

Photo of High Voltage Resonance Tester
