| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO |
| رقم الموديل: | CFL |
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | حالة الخشب الرقائقي |
| وقت التسليم: | 15 يومًا |
| شروط الدفع: | Western Union ، T/T ، L/C |
| القدرة على العرض: | 100 مجموعة في الشهر |
| Power supply: | AC220V±10%,45~65Hz | Maximum detect distance: | 30M |
|---|---|---|---|
| Voltage measuring range: | 0~35KV | Keyword: | Underground Cable Earth Fault Locator Instrument |
| ضمان: | 1 سنة | Size: | 225*165*125mm |
| Weighg: | 2KG | استهلاك الطاقة: | 5VA |
I. Introduction:
The normal operation of cable-communication and electric transport completely rely on the good condition of the cable-circuit. Once the circuit breaks down and without punctually examination and repairing, it will no doubt trigger the ass economic loss and bad social influence. So the electric fault measuring instrument is a very important tool.
This cable fault location instrument uses multiple testing methods and adopts the most advanced electronic devices and with computer and special electronic technology, combining our company’s successful experience of long-time exploitation on cable-fault measuring instruments, and it is absolutely of high tech, intelligence and abundant functions.
Our cable fault locator is a testing device of good integrity. It can test on the High Resistance Flashover Fault, Grounding High and Low Resistance Fault, Short & Off Circuit on the Cable Fault and Poor contact and etc. If being equipped with sounding method and locating instrument, it can exactly detect the fault point. Furthermore, it especially applies for testingvarious power cable and communication cable.
II. Functions
| 1 | Maximum detect distance | 30km |
| 2 | Detect resolution | 1m |
| 3 | Power supply of cable fault locator | AC220V±10%,45~65Hz(it also has battery inbuilt) |
| 4 | Sample rate of impulse signal | 100MHz |
| 5 | Voltage series of cable |
low voltage power cable(0~1kV), high voltage power cable(1kv~35kv), communication cable |
| 6 | Fault type can be detected |
Disconnection of power cable, low insulation of power cable( High voltage impulse generator is required), low resistance and high resistance connected to earth , poor contact of connectors |
| 7 | Storage | 100 groups record |
| 8 | Power consumption | 5VA |
| 9 | Voltage divider ratio | 100:1 |
| 10 | Size | 225*165*125mm |
| 11 | Weight | 2KG |
| 12 | Working temperature | 0~50℃ |

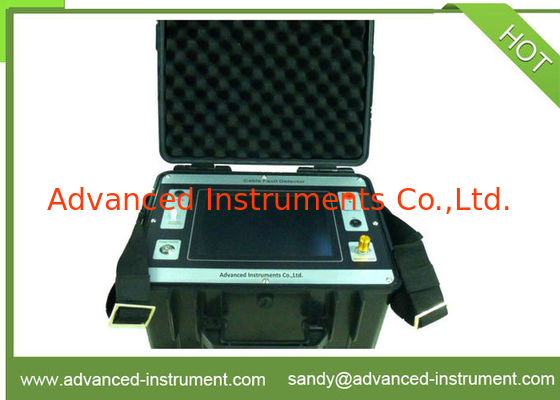

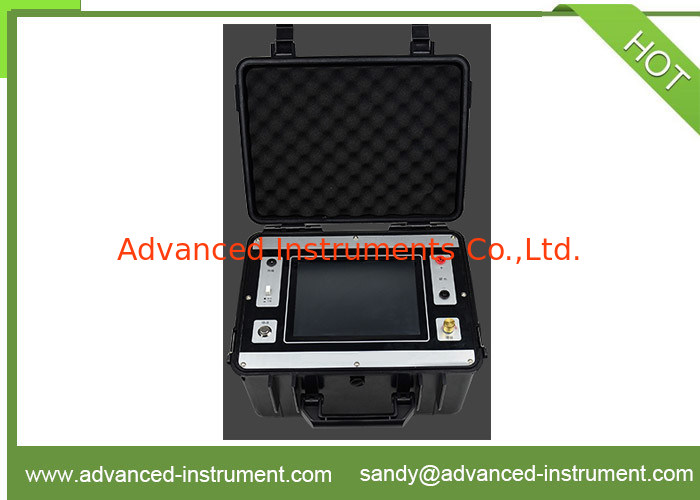

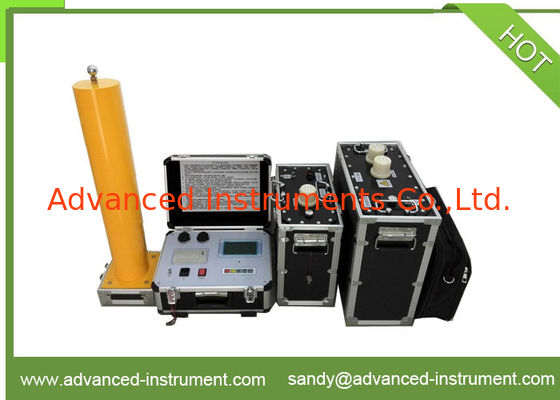

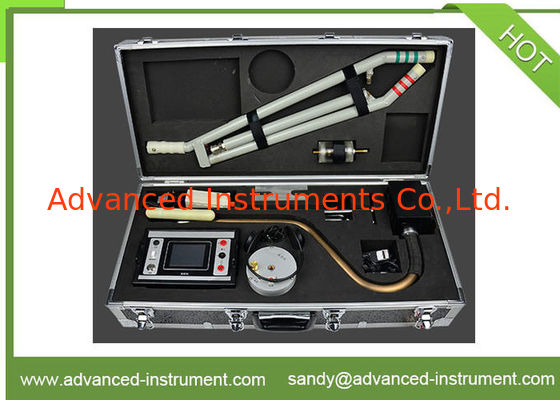

Photo of 35KV Underground Cable Earth Fault Locator Instrument
