| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO |
| رقم الموديل: | BDV |
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | كرتون |
| وقت التسليم: | 15 يومًا |
| شروط الدفع: | Western Union ، T/T ، L/C |
| القدرة على العرض: | 100000 مجموعة في الشهر |
| مزود الطاقة: | AC220V ، 50 هرتز | عرض: | شاشات الكريستال السائل |
|---|---|---|---|
| Output voltage: | AC 0V~80KV or 0~100KV | Accuracy: | ±(1% of full scale + 2 digits) |
| ضمان: | 1 سنة | Keyword: | Insulation Oil Tester,Breakdown Voltage BDV Tester |

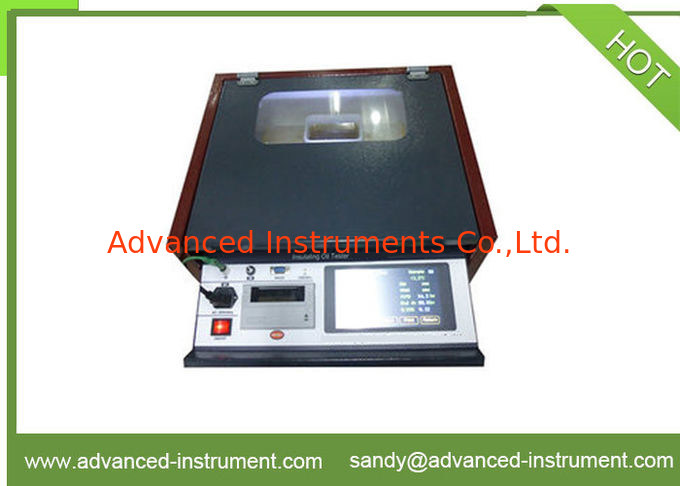

IEC156 80kV Transformer Oil Breakdown Voltage BDV Tester
I.Introduction:
BDV-2 Transformer oil tester is developed according to DL/T846.7-2004 "Insulating oil dielectric tester" standard and the IEC/ASTM international standard. Built-in EEPROM memory can save 100 sets of test data, and test results can be printed at any time. It has the advantages of simple operation, powerful function, stable and reliable, and high degree of automation
II.Specifications:
| No. | Parameters | Specifications |
| 1 | Output voltage | AC 0V~80KV or 0~100KV |
| 2 | Rate of voltage rise | 0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5% |
| 3 | Max. test times | 9 |
| 4 | Stir time | 0~999s |
| 5 | Wait time | 0~999s |
| 6 | Measurement accuracy | ±(1% of full scale + 2 digits) |
| 7 | Resolution | 0.1KV |
| 8 | Temperature measurement range | 0°C to 70°C, or better |
| 9 | Temperature resolution | 1°C, or better |
| 10 | Data storage | 100 groups |
| 11 | Weight | 38kg |
| 12 | Size | 550 mm*500mm*580mm |
| 13 | Power supply | AC220V, 50Hz |
| 14 | Working environment | Room temperature to 45°C, humidity<85% |
