| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO |
| رقم الموديل: | تي دي تي |
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | كرتون |
| وقت التسليم: | 15 يوم عمل |
| شروط الدفع: | Western Union ، T/T ، L/C |
| القدرة على العرض: | 100000 مجموعة في الشهر |
| مزود الطاقة: | تيار متردد 220 فولت ± 10٪ | عرض: | شاشات الكريستال السائل |
|---|---|---|---|
| Keyword: | Tangent Delta Analyzer,Power Factor Tester | انتاج عالي: | 0.5kV ~ 10kV |
| الحد الأقصى الحالي: | 200 مللي أمبير | سعة: | 2000VA |
| Size: | 350*270*270mm | وزن: | 28 كجم |

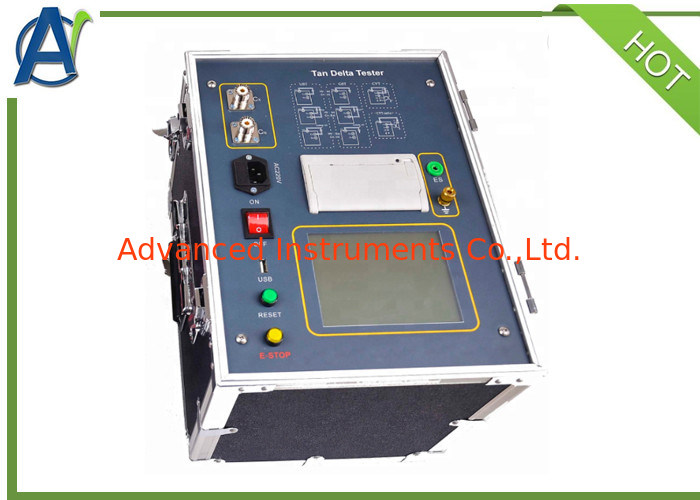

Electrician Instrument Automatic Transformer Tangent Incremental Power Factor Tester
I.Introduction:
This tangent delta power factor tester is a high-precision instrument, which can be applied to automatically measure electrical loss tangent ( ) and capacitance of all kinds of high voltage electrical equipments on the spot of power plants, substations,laboratory, etc. The instrument is an integrated structure with a dielectric loss test bridge, a variable frequency power supply, a step-up transformer and a SF6 high stability standard capacitor.
II.Specifications:
| 1 | Use conditions | -15℃∽40℃ | RH＜80% | |
| 2 | Anti-interference | Frequency conversion | ||
| 3 | Power | AC 220V±10% | Allowable generator | |
| 4 | High output | 0.5KV∽10KV(rated voltage:10KV) | Every 0.1kV | |
| 0.5KV∽12KV(rated voltage:12KV) | ||||
| Precision | 2% | |||
| Maximum current | 200mA (rated voltage:10KV) | |||
| 167mA (rated voltage:12KV) | ||||
| Capacity | 2000VA | |||
| 5 | Self-excited power | AC 0V∽50V/15A | 45HZ/55HZ 47.5HZ/52.5HZ 55HZ/65HZ 57.5HZ/62.5HZ Automatic double frequency |
|
| 6 | Resolving power | tgδ: 0.001% | Cx: 0.001pF | |
| 7 | Precision | △tgδ:±(Reading*1.0%+0.040%) | ||
| △C x :±(Reading*1.0%+1.00PF) | ||||
| 8 | measuring range | tgδ | Unlimited | |
| C x | 15pF ＜ Cx ＜ 300nF | |||
| rated voltage:10KV | 10KV | Cx ＜ 60 nF | ||
| 5KV | Cx ＜ 150 nF | |||
| 1KV | Cx ＜ 300 nF | |||
| rated voltage:12KV | 12KV | Cx ＜ 30 nF | ||
| 5KV | Cx ＜ 150 nF | |||
| 1KV | Cx ＜ 300 nF | |||
| CVT test | Cx ＜ 300 nF | |||
| 9 | CVT range | 10∽10000 | ||
| accuracy | 0.1% | |||
| Resolving power | 0.01 | |||
| 10 | Exterior dimension | 350(L)×270(W)×270(H) | ||
| 11 | Memory size | The 200 groups supports U disk data storage | ||
| 12 | Weight | 28 Kg | ||
