Oil Freezing Point & Cold Filter Clogging Point Detection Equipment

Oil Freezing Point & Cold Filter Clogging Point Detection Equipment

    • Oil Freezing Point & Cold Filter Clogging Point Detection Equipment
    • Oil Freezing Point & Cold Filter Clogging Point Detection Equipment
  • Oil Freezing Point & Cold Filter Clogging Point Detection Equipment

    تفاصيل المنتج:

    مكان المنشأ: الصين
    اسم العلامة التجارية: AI
    إصدار الشهادات: ISO
    Model Number: SPT-I

    شروط الدفع والشحن:

    الحد الأدنى لكمية: 1 مجموعة
    الأسعار: قابل للتفاوض
    تفاصيل التغليف: لوح صلب
    وقت التسليم: 20 يومًا
    شروط الدفع: Western Union ، T/T ، L/C
    القدرة على العرض: 20 مجموعات شهريا
    ﺎﺘﺼﻟ ﺍﻶﻧ
    مفصلة وصف المنتج
    Standards: GB/T510 Application: Testing Solidifying Point&CFPP
    استهلاك الطاقة: 1000W ضمان: 1 سنة
    Size: 620mm×460mm×355mm Power supply: AC(220±10%), 50Hz
    غرفة العمل: اثنين Temperature range: Ambient to -70℃

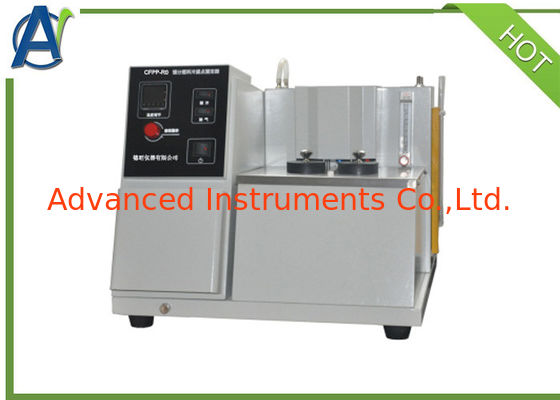

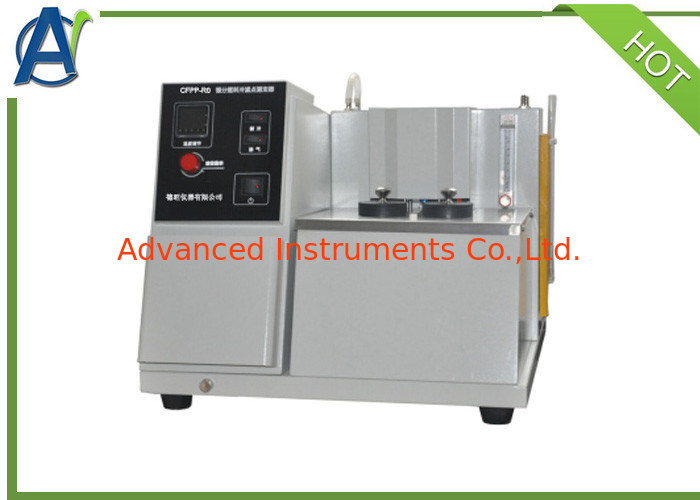

    Oil Freezing Point & Cold Filter Clogging Point Detection Equipment



    Summary
    This instrument is newly designed and made as per national standard of People's Republic of China GB/T510 Standard Test Method for Solidifying Point of Petroleum Oils.It is suitable to determine solidifying point of petroleum products. It is widely used in oil exploitation companies, petroleum manufacturers, petroleum users, colleges and scientific research institutes.

    I. Main technical features
    1. The material of workbench is stainless steel. It has two cooling baths in one chamber. The two cooling baths are the same in temperature.
    2. It adopts special technology. It is no need to use cooling liquid in cold chamber. The cooling rate is fast and efficiency is high. The temperature in cooling baths is uniform and it can reach -70℃. The precision is ±0.5℃.
    3. The instrument adopts bench structure. The design is simple and easy to use. Operator can do solidifying point test as long as buying this equipment.

    II. Main technical specifications
    1. Power supply: AC(220±10%), 50Hz
    2. Working chamber: Two test baths in one chamber. The temperatures are the same.
    3. Temperature range: Ambient to -70℃
    4. Temperature control accuracy: ±0.5℃
    5. Refrigeration: New-type refrigeration compressor
    6. Ambient temperature: ≤30℃
    7. Relative humidity: ≤85%
    8. Maximum power consumption: 1000W
    9. Dimension: 620mm×460mm×355mm


    III.SPT-I Solidifying Point Testing Eequipment Accessories and Documents List





    No. Name Unit Qty Memo
    1 SPT-I Solidifying Point Testing Equipment Set 1
    2 Thermometer(-80~60)℃ scale mark 1℃ Piece 1
    3 Stopping ring of thermometer(1#) Piece 2
    4 Fuse 10A(Ф5×20) Piece 2
    5 Bath cover Piece 2
    6 Operation manual Piece 1
    7 Temperature control device usage manual Piece 1





    IV,SPT-I Solidifying Point Tester's Reagent and Auxiliary Equipments

    No. Name Specification Quantity Memo
    1 Absolute ethyl alcohol Analytical pure 500ml 3 bottles
