| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO |
| رقم الموديل: | SCT |
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | لوح صلب |
| وقت التسليم: | 20 يومًا |
| شروط الدفع: | Western Union ، T/T ، L/C |
| القدرة على العرض: | 20 مجموعات شهريا |
| المعايير: | ASTM D5453 | Test method: | Ultraviolet Fluorescence |
|---|---|---|---|
| Temperature Controlling Range: | Ambient To 1150℃±1℃ | Measuring range: | 5ppm ～5000ppm |
| مزود الطاقة: | AC220V ± 10 ٪ ، 50 هرتز | القوة الكلية: | 1500 واط |
| ضمان: | 1 سنة | عينة كمية: | 5-20 ميكرولتر |

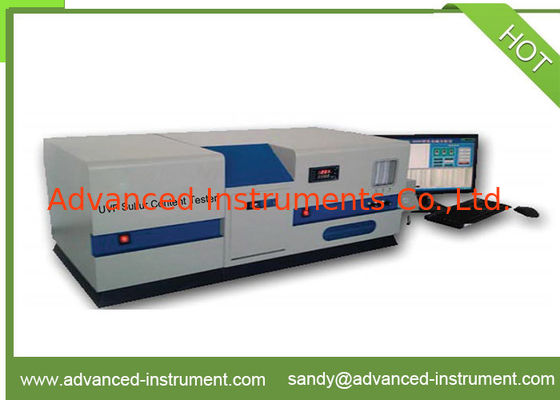

ASTM D5453 Sulfur Content in UV Fluorescent Oil Analyzer
Introduction:
This instrument is used to determine the total sulfur content by UV fluorescence.It Improves the ability of anti-jamming and avoids the complicated operation of titration pool and factors of instability which used Coulometry. So the sensitivity of the instrument is greatly improved. The key components of the system adopt imported components to protect the detector light leakage and steam leakage and makes the machine has a reliable guarantee. Standards:SH/T 0689－2000, ASTM D 5453 -2006
Specifications:
| Standard configuration | Printer＋Computer＋Main unit＋Liquid injector |
| Other optional parts | Solid sample injector, gas sample injector |
| Sample types | Solid, gas and liquid |
| Sample injection quantity | Solid:1-20mg; Liquid:5-20μL; Gas:1-5mL |
| Measuring range | 5ppm ～5000ppm(High concentration should be diluted, Low concentration gas sample is up to 0.1ppm) |
| Temperature range | Ambient to 1150℃±1℃ |
| Air supply requirements | High purity argon:above 99.9% ; High purity oxygen:above 99.9% |
| Power supply | AC220V±22V,50Hz±0.5Hz,1500 W |
| Dimension |
Host:305(W)×460(D)×440(H)mm; Temp controller:550(W)×460(D)×440(H)mm |
| Net weight | Host:20kg, Temp controller:40kg |
| Test standard | ASTM D5453 |
| Test method | Ultraviolet Fluorescence |
