| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO |
| Model Number: | GVF |
| Minimum Order Quantity: | 1 SET EN 60903 Fire Resistant Tester |
|---|---|
| الأسعار: | قابل للتفاوض |
| Packaging Details: | EN 60903 Fire Resistant Tester packed in plywood case |
| وقت التسليم: | 40 يومًا |
| شروط الدفع: | ويسترن يونيون ، T / T ، L / C ، MoneyGram |
| القدرة على العرض: | 50 مجموعة في الشهر |
| Test standard: | EN 60903 | وظيفة: | اختبار مقاومة الحريق |
|---|---|---|---|
| كائن اختبار: | قفازات عازلة للكهرباء | وزن: | 19 كجم |
| Dimension: | 500mm（W）X 550mm（H）X 300mm（D） | Power supply: | 220V,50Hz,3A |
| القطر الداخلي للموقد: | 9.5mm±0.3mm | ضمان: | 1 سنة |
Product Introduction

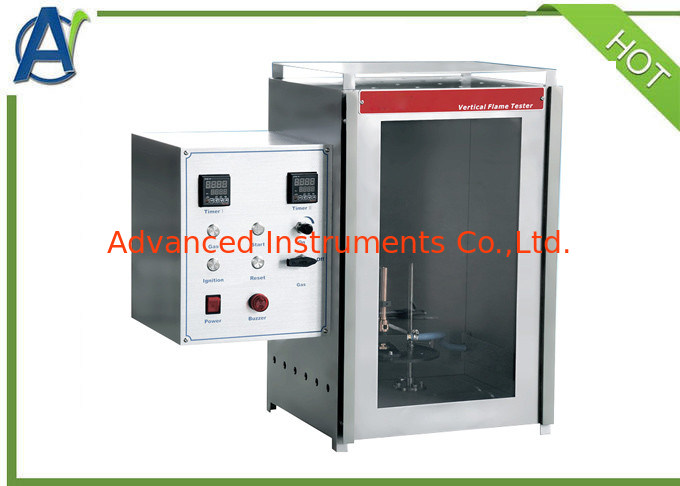

Insulating gloves flame resistance tester, developed according to GB/T17622-2008 and EN 60903, the insulation gloves standard, suitable for live working insulation gloves flame resistance test.
Performance characteristics
1. The standard stainless steel box is equipped with a transparent observation window, which can detect the flame spread rate in time;
2. Insulating gloves flame resistance tester is equipped with one stopwatch timer and one ignition device;
3. The needle valve adjusts the height of the flame;
4. The burner is fixed on a sliding track for easy operation, and the needle valve can adjust the flame height;
5. Insulating gloves flame resistance tester is equipped with a Bunsen burner conforming to ASTM D5025 standard, with an inner diameter of 9.5mm±0.3mm, and the flame temperature and height can be adjusted;
6. The test equipment has two GB/T17622-2008 6.6.2 standard stainless steel sample holders;
7. The insulating golves fire resistance tester is euipped with flame height gauge.
Installation Requirement
| 1 | Power supply | 220V,50Hz,3A |
| 2 | Environment conditions | Temperature (20 ± 2) °C,humidity (65 ± 5) % |
| 3 | Required gas | Propane |
| 4 | Dimension | 500mm(W)X 550mm(H)X 300mm(D) |
| 5 | Weight | 19KG |
