Thermo-oxidation Engine Oil Simulation Test Apparatus

Introduction:

Thermo-oxidation Engine Oil Simulation Test Apparatus is used for the engine oil thermal oxidation simulation test. The mixture of the sample and the catalyst is fully mixed uniformly, and a certain amount of air is introduced. The sample flows down spirally along the metal coil on the deposition rod, and circulates for a total of 24 hours. Weighing deposition rod before and after test is used to evaluate the tendency of engine oil to form deposits under high temperature oxidation conditions.

Features:

1. This Thermo-oxidation Engine Oil Simulation Test Apparatus is the first in China and can replace similar foreign products;
2. The main components are imported products (temperature controller, deposition rod, gear pump, flow sensor, etc.);
3. The user can program the working time, and it will stop automatically after the test;
4. Optional ASTM D6335, SH/T0750 method test components are available for Thermo-oxidation Engine Oil Simulation Tester'

5. Catalyst magnetic mixing device, mixing time and mixing speed can be set;
6. Automatic electronic flow controller, accurately control the gas flow rate of 10ml±0.2ml/min;
7. All parameter settings can be performed on the touch screen, and the test can be started with one key after completion;

Specifications:

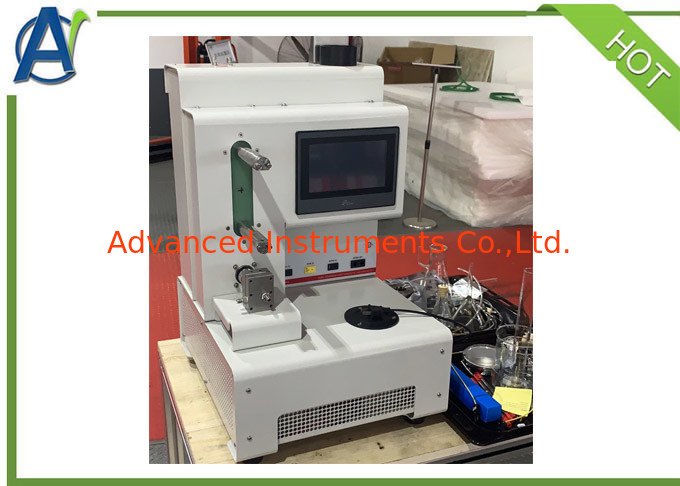

Photo of Thermo-Oxidation Engine Oil Simulation Test Apparatus TEOST MHT
