| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO |
| Model Number: | DPT-A |
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| Packaging Details: | Hardboard box |
| وقت التسليم: | 25 يومًا |
| شروط الدفع: | L/C ، T/T ، Western Union |
| القدرة على العرض: | 200 مجموعة في الشهر |
| المعايير: | ASTM D566 | Temperature control range: | 25℃～300℃ |
|---|---|---|---|
| عرض: | شاشة اللمس LCD | عملية: | تلقائي |
| طريقة التبريد: | تبريد الهواء القسري | مزود الطاقة: | AC220V ± 10 ٪ 50Hz |
| ضمان: | 1 سنة | دقة التحكم في درجة الحرارة: | 0.1 ℃ |

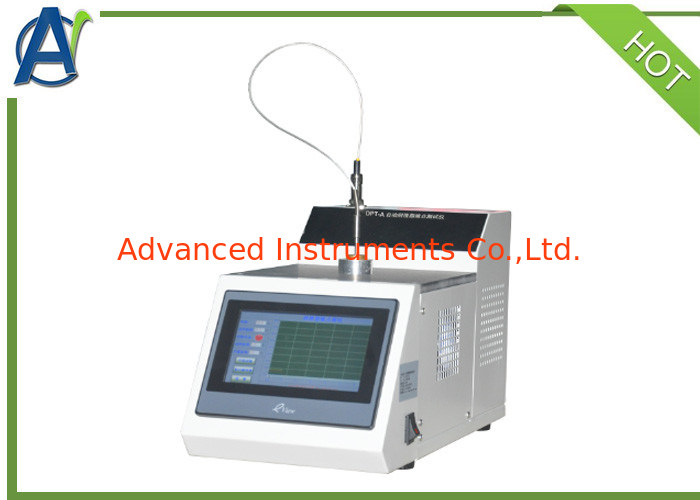

Introduction
The Dropping Point Tester Equipment is designed and made as per the national standard of People’s Republic of China GB/T 4929 Lubricating grease- Determination of Dropping Point and ASTM D566 Standard Test Method for Dropping Point of Lubricating Grease.
Main Features:
◆This test equipment adopts metal bath heating, rapid heating and simple operation
◆It can automatically detect the dropping point of the sample, no special person is required to monitor the experiment process, and automatically notify after the experiment is over
◆The high-precision sensor can capture the dripping process of grease and get the experimental results in time
◆This Automatic dropping point test equipment uses touch screen display, clear reading and easy operation
◆Using high-precision PT100 temperature measurement sensor, the measurement accuracy is high, which is ±0.1°C
◆The dropping point test equipment is equipped with over-temperature limit function
Technical specifications
| Applicable standard | GB/T 4929,ASTM D566 |
| Temperature controlling range | 25℃～300℃ |
| Temperature controlling accuracy | 0.1℃ |
| Detection method | Automatic test and display result |
| Display method | LCD Touch screen |
| Cooling method | Forced air cooling |
| Heating method | Heating tube |
| Power supply | AC220V±10% 50HZ |
