| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO |
| Model Number: | Noack-B |
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | لوح صلب |
| وقت التسليم: | 30 يوما |
| شروط الدفع: | L/C ، T/T ، Western Union |
| القدرة على العرض: | 20 مجموعات شهريا |
| معايير الاختبار: | ASTM D5800،SH/T 0059 | طلب: | تحديد فقدان التبخر لزيت التشحيم |
|---|---|---|---|
| طريقة الاختبار: | نواك معدني من شركة نون وود | ضمان: | 1 سنة |
| مزود الطاقة: | AC220V ± 10 ٪ 50Hz | Keyword: | Non-Wood's Metal Noack Tester |
| نطاق التحكم في درجة الحرارة: | درجة الحرارة المحيطة ~ 300 درجة مئوية | قوة التدفئة: | 2000W |
Introduction:

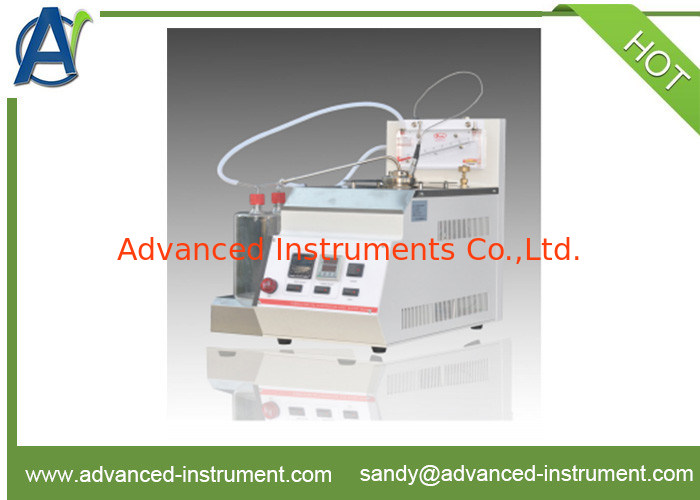

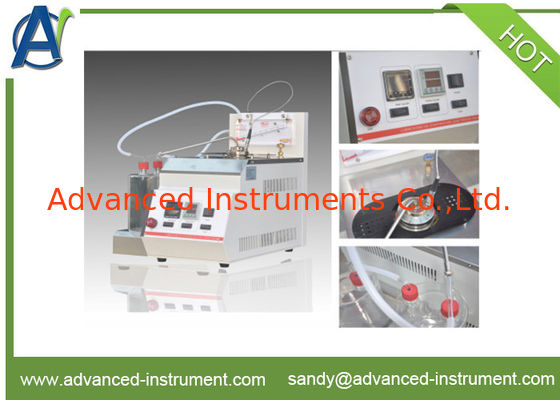

NOACK-B Non-Wood's Metal Noack Analyzer is used to determine the amount of evaporation loss of lubricating oil. The weighed sample was placed in a crucible for heating, and the mass of the evaporation loss of the test sample was measured by heating at a constant temperature and suction pressure by heating for 1 hour, expressed as a percentage loss.
Features:
1. The latest technology: replace the Noack A method, the test process does not require Wood Alloy to avoid environmental pollution and personal injury.
2. Control mode: embedded operating system, high-speed microprocessor control, stable and reliable work.
3. Printing method: USB printer interface, RS232 interface.
4. Touch screen: LCD display, convenient touch screen operation.
5. Security: Built-in diagnostic program and various alarm functions.
6. Precision control: built-in large-capacity EPROM, real-time recording of temperature and pressure values at each moment.
Specifications:
| Applicable standards | SH/T 0059; ASTM D5800 B |
| Temperature range | Ambient ~ 300 ° C |
| Temperature setting | Resolution accuracy ± 0.1 ° C; temperature accuracy ± 0.5 ° C |
| Heating unit | Environmentally friendly lightweight heating unit |
| Vacuum control | Vacuum pump and pressure gauge air filter |
| Pressure range | 0 ~ 25 mm H2O |
| Pressure accuracy | Resolution accuracy ±0.05 mm H2O; stability accuracy ±0.2 mm H20 |
| Heating power | 2.0KW |
| Power supply | AC220V ± 10% 50Hz |
