| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO |
| Model Number: | DA-R4 |
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | لوح صلب |
| وقت التسليم: | 20 يومًا |
| شروط الدفع: | L/C ، T/T ، Western Union |
| القدرة على العرض: | 20 مجموعات شهريا |
| Test standards: | ASTM D86,GB/T6536,ISO3405 | نطاق القياس: | درجة حرارة الغرفة ~ 400 ℃ |
|---|---|---|---|
| مزود الطاقة: | تيار متردد 220 فولت ±10% 50/60 هرتز | استهلاك الطاقة: | 2500W |
| Size: | 600*450*650mm3 | وزن: | 53 كجم |
| عرض: | شاشات الكريستال السائل | Keyword: | ASTM D86 Distillation Apparatus |
◆Big LCD screen,which can show distillation rate,temperature,recovery volume ratio etc.
◆Automatic optimize all parameters of heating power.
◆Feedback heater,bumping after placing sample.
◆All components are made by fire-resistant,high temperature resistant and non-toxic materials,
◆IR sensor makes sure accuracy of measuring volume,without influence of temperature.◆Reading by IR measuring cylinder,drove by step motor,high precision screw ball.
◆Low noise air compressor refrigeration system.
◆Automatic stop after test finish.
◆Automatic temperature volume correction.
◆Automatic Atmospheric pressure compensation
◆When measuring benzene products,the electrical furnace can stop heating automatically,to prevent temperature overshoot(please inform before purchasing)
Technical Specifications

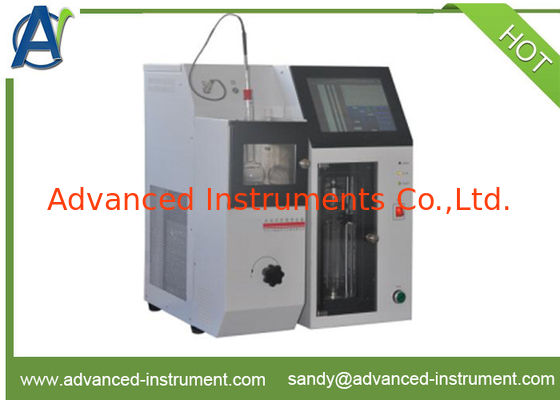

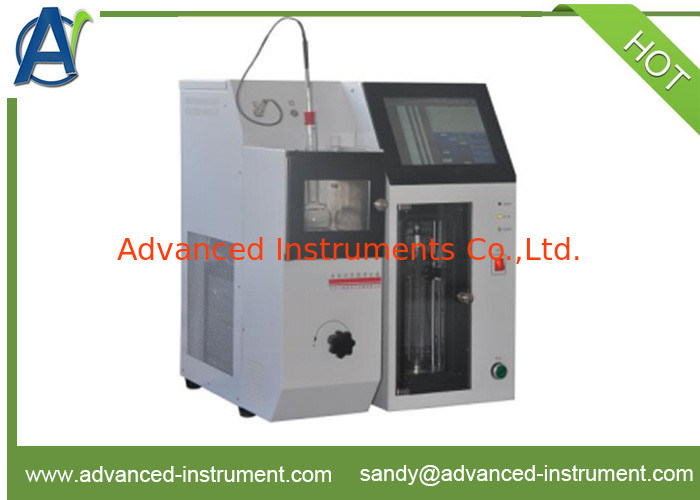

| Model | DA-R4 Fully Automatic Distillation Apparatus |
| Applicable standards | GB/T6536；ASTM D 86,ISO 3405； |
| Measuring temperature | Ambient~+400℃ |
| Temperature controlling accuracy | +/- 0.1℃ |
| Volume accuracy | +/- 0.1 ml |
| Temperature of measuring cylinder | 0～60℃ |
| Distillation rate | 4～5ml/min |
| Heating mode | Feedback heater |
| Display mode | 10.4 inch LCD screen |
| Refrigeration mode | Air compressor |
| Heating power | 2500W |
| Dimension | 600*450*650mm |
| Net weight | 53KG |
