| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO |
| Model Number: | NCF-Z |
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | حالة الخشب الرقائقي |
| وقت التسليم: | 60 يومًا |
| شروط الدفع: | Western Union ، T/T ، L/C |
| Test standard: | EN ISO 1182,IMO FTPC Part 1,BS 476-4,EN 13501 | Power supply: | AC220V ± 10%, 50HZ, current ≤ 10A |
|---|---|---|---|
| درجة حرارة الفرن: | (750-900) ℃ | أقصى قوة: | 2kw |
| Operation: | Controlled by PC | ضمان: | 1 سنة |

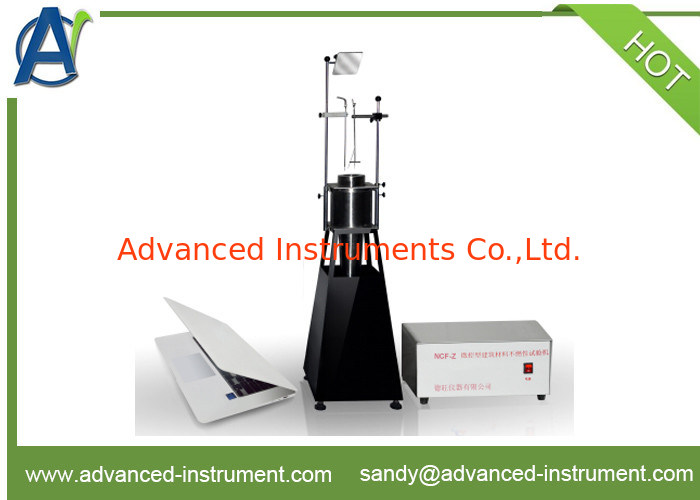

Micro-control Building Material Non-Combustibility Test Equipment meets the test standards of GB/T5464-2010 "Testing methods for non-combustibility of building materials", and ISO1182:2002 "Fire response test of building materials - non-flammability test" to determine whether the building material is non-flammable under the specified conditions.
1.Electric control cabinet dimensions: L405 x W360 x H180mm
2.Power supply voltage: AC220V ± 10%, 50HZ, current ≤ 10A
3.Stabilization time: room temperature to 750℃ ≤ 1h
4.Furnace temperature: (750 - 900)℃
5.Furnace temperature drift: < 5℃/ 10 min
6.Heating power: 800W-1000W
7.Maximum power: 2KW
8.Power heating voltage: 220V heating wire
9.Heating furnace: Ф95mm x Ф75mm x Ф150mm, 3mm x 0.2mm nickel 80% chromium 20% resistance band
10.Airflow cover: Ф75mm x 50mm
| No. | Name | Quantity |
| 1 | Main Unit | 1 Set |
| 2 | Combustion furnace | 1 Set |
| 3 | Hanging basket | 2 PCS |
| 4 | Locating rod | 1 Root |
| 5 | Observation mirror | 1 PC |
| 6 | Thermal couple | 3 PCS |
