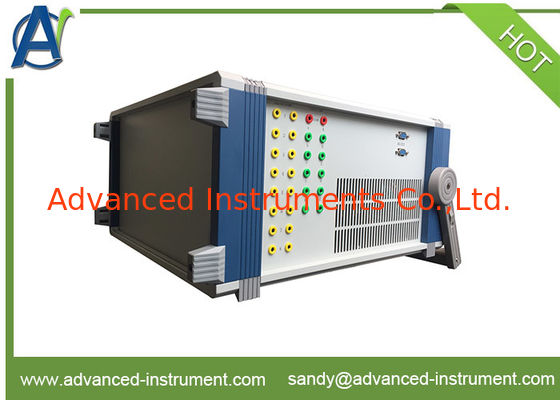

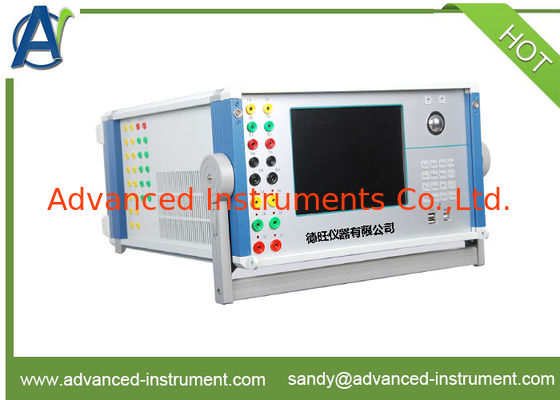

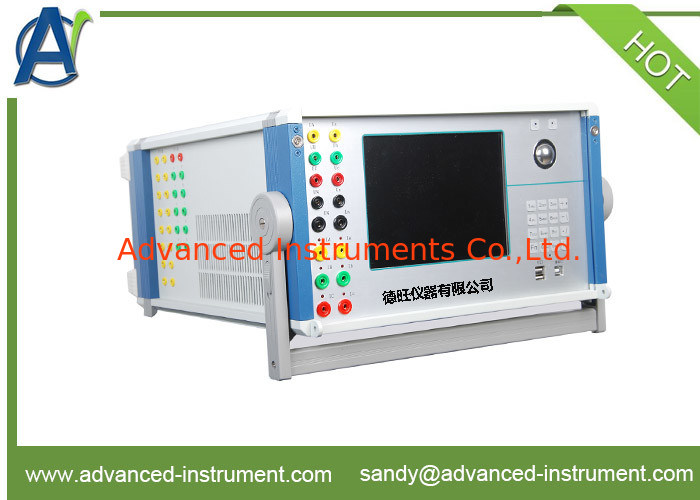

| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO |
| Model Number: | RPT-6 |
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | كرتون |
| وقت التسليم: | 15 يومًا |
| شروط الدفع: | T/T ، Western Union ، L/C |
| القدرة على العرض: | 100000 مجموعة في الشهر |
| مزود الطاقة: | تيار متردد 220 فولت ± 10٪ | عرض: | شاشات الكريستال السائل |
|---|---|---|---|
| حاضِر: | 6*30 أ | Voltage: | 6*120V |
| ضمان: | 1 سنة | Keyword: | Protective Relay Test Equipment |
| Size: | 420×360×210mm³ | وزن: | 19 كجم |
I.Introduction:
This relay protection tester can not only test the traditional relays and protectors, but also the modern micro computer replays, special for transformer differential protection and transfer equipment.
This protective relay test equipment is easy and fast to operate. The stability of the accuracy has been greatly improved.
II.Functions
1.High performance Industrial control computer is adopted as the controlling computer.
2.True color LCD display, tracking ball and optimized keyboard can be used without an external mouse and keyboard.
3.You can access data, communicate data and upgrade software conveniently.
4.The operation is simple and convenient, and is easy to be mastered.
5.High-speed digital controlling processor is adopted as the output core of the tester.
6.High precision D/A converter is employed for ensuring the precision and linearity of current and voltage in the whole range.
7.Voltage and current amplifier
8.Digital input and output
9.Auxiliary DC power supply output for special use
III.Specifications:
| Setting Range | Power | General | |
|
Current Generators |
6-phase ac(L-N) 6*0…30A | 6-phase ac 6*260VA/W | Accuracy ＜0.2% typical |
| 6-phase ac(L-N) 6*0…30A | 6-phase ac 6*260VA/W | Accuracy ＜0.2% typical | |
| 3-phase ac(L-N) 3*0…60A | 3-phase ac 3*400VA/W | Distortion ≤ 0.5%guaranteed | |
| 1-phase ac(L-N) 1*0…180A | 1-phase ac 1*1080VA/W | Resolution 1mA | |
| 6-phase dc(L-N) 6*0…10A | 6-phase dc 6*180VA/W | ||
| 3-phase dc(L-N) 3*0…20A | 3-phase dc 3*320VA/W | ||
| 1-phase dc(L-N) 1*0…60A | 1-phase dc 1*780VA/W | ||
|
Voltage Generators |
6-phase ac(L-N) 6*0…120V | 6-phase ac 6*70VA | Accuracy ＜0.2%typical |
| 6-phase ac(L-L) 0…240V | 6-phase ac 3*140VA | Distortion ≤ 0.5%typical | |
| 6-phase dc(L-N) 6*0…160V | 6-phase dc 6*80W | Resolution 4.0mV | |
| 6-phase dc(L-L) 0…320V | 6-phase dc 3*160W | ||
|
Generator, general |
Frequency range | ||
| Sine signal DC…1000Hz | Transient signal DC…3000Hz | ||
| Frequency accuracy 0.01% | Frequency resolution 0.01Hz | ||
| Phase angle range -360…+360 | Phase angle accuracy 0.1 | ||
|
Digital Input and Output |
Digital input | Digital output | General |
| Number 10 | Type Free relay contact |
Nominal supply voltage 240Vac |
|
| Input characteristic 10-250VDC or free contact |
Number 8 |
Permissible supply voltage 220-264Vac |
|
| Time resolution 1ms | Break capacity ac 0.5A,250V | Nominal frequency 50/60Hz | |
| Max. measuring time 9999s | Break capacity dc 0.5A,60Vdc |
Permissible frequency 45-65Hz |
|
| Operating temperature -5…+50℃ | |||
| Size | 420×360×210mm³,＜19kg | ||

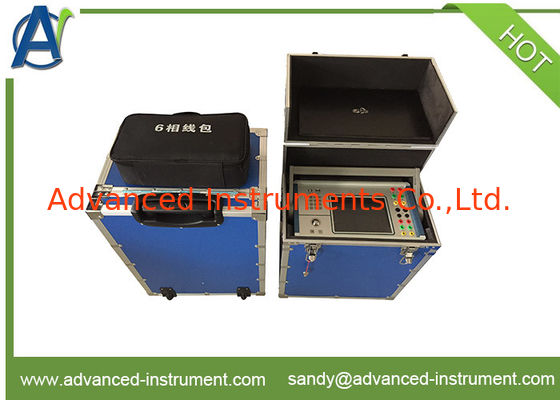

Package of 6 Phase Secondary Current Injection Tester
