| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO |

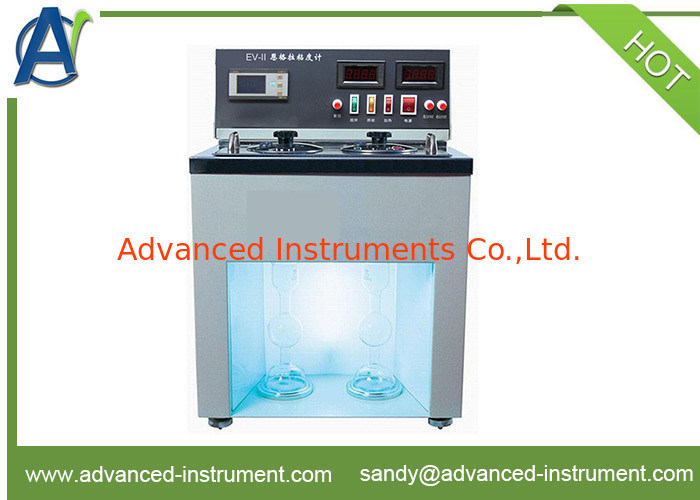

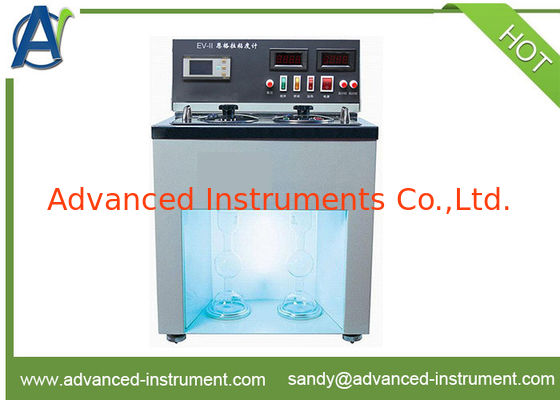

| Model Number: | EV-II |
| الحد الأدنى لكمية: | 1 جهاز كمبيوتر |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | حالة الخشب الرقائقي |
| وقت التسليم: | 10 أيام |
| شروط الدفع: | / تي تي، ويسترن يونيون |
| القدرة على العرض: | 1000 قطعة/شهر |
| Test standard: | ASTM D1665 | Power supply: | AC (220±10%) V, 50Hz. |
|---|---|---|---|
| قيمة المياه القياسية: | (51 ± 1) ق | Temperature range: | (0~100)℃ |
| Measuring flask: | (200±0.2) ml | Size: | 430mm×410mm×620mm |
| Purpose: | determine the rate of time(seconds) of liquid flow out from Engler viscometer |
| 1 | Power supply | AC(220±10%)V, 50Hz |
| 2 | Standard water value | (51±1)s |
| 3 | Temperature range | (0~100)℃ |
| 4 | Temperature control accuracy | ±0.1℃ |
| 5 | Engler viscosity thermometer | Correspond with GB/T 514 |
| 6 | Specification of measuring flask | (200±0.2) ml |
| 7 | Inner crucible | Stainless steel material |
| 8 | Timing | Max 999.9s |
| 9 | Timing mode | LED electronic timing |
| 10 | Heating power | 700W |
| 11 | Ambient temperature | (-10~+40)℃ |
| 12 | Relative humidity | ≤85% |
| 13 | Dimension | 430mm×410mm×620mm |
| 14 | Maximum power consumption | 800W |
| No. | Name | Unit | Qty | Memo |
| 1 |
Engler Viscometer |
Set | 1 | |
| 2 |
Temperature sensor |
Piece | 1 | Installed in the instrument |
| 3 | Receiving flask (100ml) | Piece | 2 | |
| 4 |
Engler thermometer (0 ~ 50) ℃, scale division is 0.5 ℃ |
Piece | 1 | |
| 5 |
Engler thermometer (0～100) ℃, scale division is 0.1 ℃ |
Piece | 1 | |
| 6 | Wooden stopper of viscometer | Piece | 2 | |
| 7 | Fuse 10A(φ5×20) | Piece | 2 | |
| 8 | Stopping ring for thermometer(1#) | Piece | 2 | |
| 9 | Operating Manual | Piece | 1 |
