| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO |
| Model Number: | AIC-1831 |
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | لوح صلب |
| وقت التسليم: | 20 يومًا |
| شروط الدفع: | L/C ، T/T ، Western Union |
| القدرة على العرض: | 20 مجموعات شهريا |
| مزود الطاقة: | AC220V / 50 هرتز | نطاق التحكم في درجة الحرارة: | 21 ～ 38 ℃ |
|---|---|---|---|
| وحدات العمل: | اثنين | القوة الكلية: | 1000kw |
| اختبار معيار: | ASTM D1831 ، SH/T0122 | سرعة الدوران للمحرك: | 155 ～ 180r/min |
| ضمان: | 1 سنة | الكلمة الرئيسية: | جهاز اختبار استقرار التدحرج |
Introduction
When operating this apparatus,using certain quantity sample working on roll test machine under room temperature,after 2 hours,measure the penetration of lubricating grease before and after test.This apparatus is suitable to determine the changes in the consistency of lubricating grease when worked in the roll stability test apparatus,and judge the mechanical shear stability of lubricating grease.
Characteristic
1.Stainless steel roller Φ90×180mm 5kg
2..Idle pulley has locating ring to control the normal working of roller
3.Driving motor is installed to keep rotating speed 155～180r/min
4.Roller is drove by belt
5.Mic-computer temperature controller,digital display,accuracy ±5℃,Pt 100 sensor
6.Digital timer can record working time and it has buzzer siren
7.It can test two rollers simultaneously
8.There is a hole of thermometer on the cover,and temperature can be corrected by it.
Technical specifications
| 1 | Applicable standards | ASTM D1831, SH/T0122 |
| 2 | Power supply | AC220V /50HZ |
| 3 |
Rotating speed of motor |
155～180r/min |
| 4 | Heating mode | heater band |
| 5 | Total power | 1000W |
| 6 | Temperature controlling range | 21～38℃ |
| 7 | Working units | two |
| 8 | Timing | Digital timer |

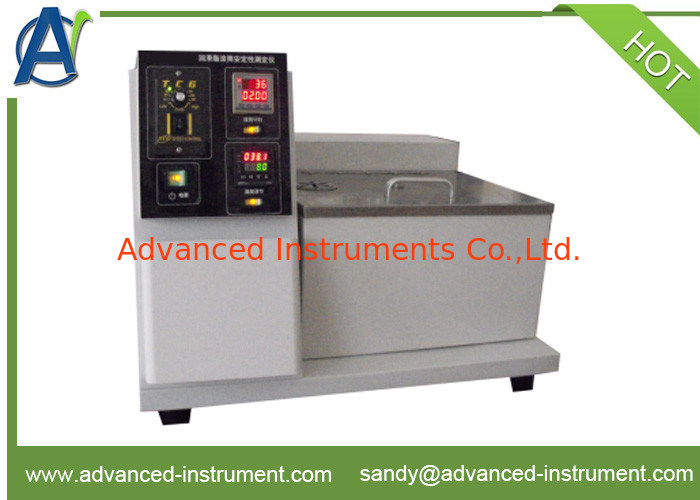

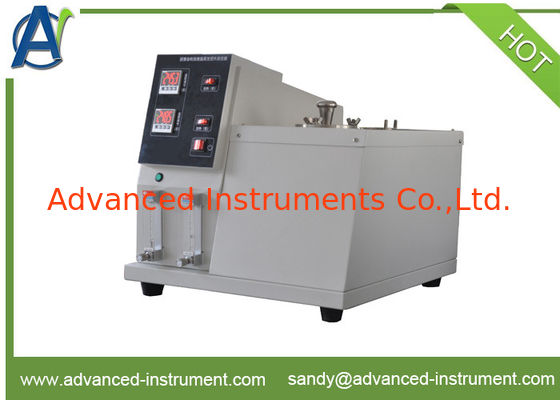

Photo of ASTM D1831 Lubricating Grease Roll Stability Test Apparatus
