| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO |
| Model Number: | AIC-972 |
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | لوح صلب |
| وقت التسليم: | 30 يوما |
| شروط الدفع: | L/C ، T/T ، Western Union |
| القدرة على العرض: | 20 مجموعات شهريا |
| مزود الطاقة: | AC220V / 50 هرتز | نطاق التحكم في درجة الحرارة: | المحيطة ~ 250 درجة مئوية |
|---|---|---|---|
| وحدات العمل: | أنبوبين | القوة الكلية: | 2.5kw |
| Test standard: | ASTM D972 | Keyword: | Evaporation Loss Testing Equipment |
| ضمان: | 1 سنة | لون: | أبيض |
| عرض: | قاد | خدمة تصنيع المعدات الأصلية: | متاح |
Introduction
This testing equipment is suitable to measure evaporation loss of lubricating oil and grease.Put the sample placed in evaporator in constant bath under certain temperature,hot air passes through the surface of sample for 22 hours,then calculate the evaporation loss according to weight loss of sample.
Characteristic
1. This evaporation loss testing equipment is desktop,including heating bath and precise flow meter.There is hole on the stainless steel cover to put sample bottle.
2. Stainless steel structure is coated with porcelain
3. Environment friendly oil bath can reduce the harm of smoke,and the thermal insulation effect is good.
4. Heater is stainless steel
5. Flow meter is very accurate,with needle valve,flow rate 0~2L/min
6. Air filter has glass wool
7. Mic-processing thermostat and PID controlling,digitally display temperature,accuracy 0.1℃,Pt 100 RTD probe.
8. The evaporation loss testing equipment has Safety device for over-heating or low liquid level
Technical specifications
| 1 | Applicable standards | GB/T7325,ASTM D972 |
| 2 | Controlling method | automatic |
| 3 | Temperature controlling mode | imported PID digital temperature controller |
| 4 | Heating mode | oil bath |
| 5 | Total power | 2.5KW |
| 6 | Temperature controlling range | ambient~250±0.1℃ |
| 7 | Working units | two tubes |
| 8 | Flow control | precise flow meter |
| 9 | Timing | Digital timer |
| 10 | Power supply | AC220V /50HZ |

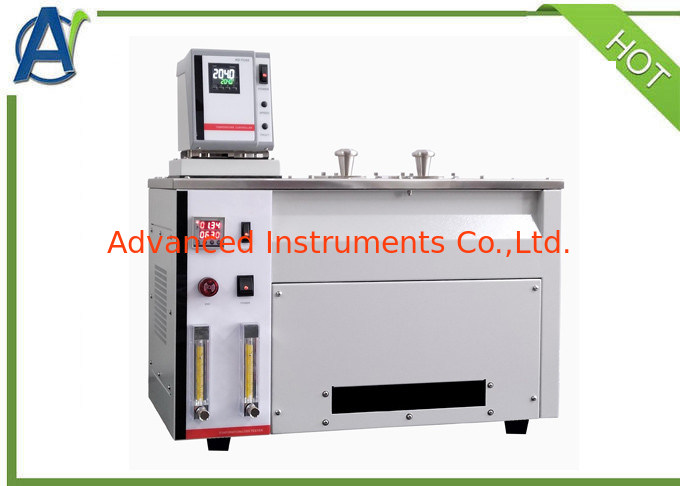

Photo of Lubricating Grease and Oils Evaporation Loss Testing Equipment
