| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO |
| رقم الموديل: | PCI-2 |
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | حالة الخشب الرقائقي |
| وقت التسليم: | 15 يومًا |
| شروط الدفع: | T/T ، Western Union ، L/C |
| القدرة على العرض: | 100000 مجموعة في الشهر |
| مزود الطاقة: | AC220V ± 10٪ ، 50 هرتز / 60 هرتز | عرض: | رقمي |
|---|---|---|---|
| سعة: | 3KVA-15KVA | النطاق الحالي: | 500A-25KVA |
| الكلمة الرئيسية: | طقم اختبار الحقن الحالي الأساسي | ضمان: | 1 سنة |
High Current Generator Primary Current Injection Tester Kit
I. Introduction:
Primary current injection tester is an essential equipment used for electrical debugging to generate high current, which be widely used in power plants, power distribution stations, electrical plants , scientific research, laboratories and other units.
Primary cuurent injection test kit is a short-term or intermittent work device and characterized by small size, light weight, good performance, easy use and maintenance.
Features:
1. Two ammeters can supervise different measurement range.
2. With indicator lighting and button, this high current generator is easy to operate
3. This primary injection kit adopts integrated and separted structure, easy to move.
4. The primary current injection test set capacity is designed based on 5-minute short-term work system. For intermittent work, working time should be less than 2.5 minutes, before continuing to work it should be shut down for 10 minutes so that all parts of the machine can cool down.
III. Specifications:
| Model | Capacity (kVA) |
Junior Range |
Secondary Range |
Dimensions (mm) L×W×H |
Weight ( kg) |
Structure | ||
| V1 | A1 | V2 | A2 | |||||
| PCI-3/500 | 3 | 220 | 15 | 6 | 500 | 430×338×550 | 45 | Integrated |
| PCI-6/1000 | 6 | 220 | 27 | 6 | 1000 | 500×380×600 | 65 | Integrated |
| PCI-12/2000 | 12 | 380 | 31.6 | 6 | 2000 | 580×400×750 | 105 | Integrated |
| PCI-15/2500 | 15 | 380 | 39.5 | 6 | 2500 | 600×430×790 | 145 | Integrated |
| PCI-24/4000 | 24 | 380 | 63 | 6 | 4000 | 640×450×820 | 180 | Separated |
| PCI-30/5000 | 30 | 380 | 79 | 6 | 5000 |
600×430×900 300×500×500 |
145 135 |
Separated |
| PCI-36/6000 | 36 | 380 | 95 | 6 | 6000 |
600×430×900 300×500×500 |
150 140 |
Separated |
| PCI-48/8000 | 48 | 380 | 126 | 6 | 8000 |
600×450×950 350×550×550 |
180 | Separated |
| PCI-60/10000 | 60 | 380 | 158 | 6 | 10000 |
800×600×1100 380×550×600 |
200 | Separated |
| Working environment | 0-50℃, ≤85%RH | |||||||
| The capacity and maximum current output could be customized according to the requirements of customer if you can not find the one you need in this table. |
||||||||

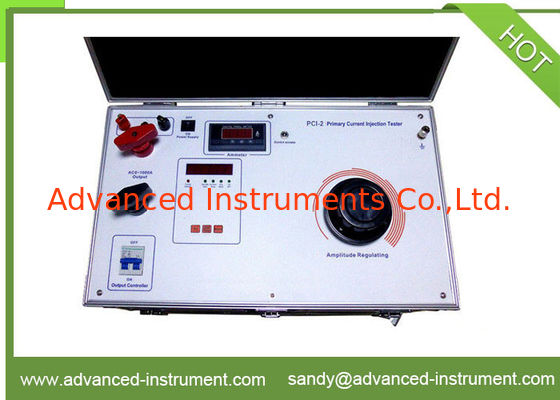

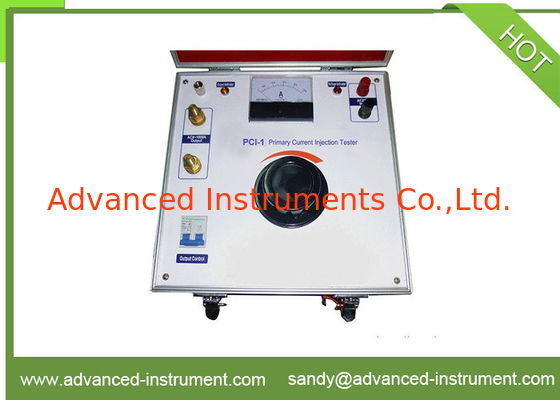

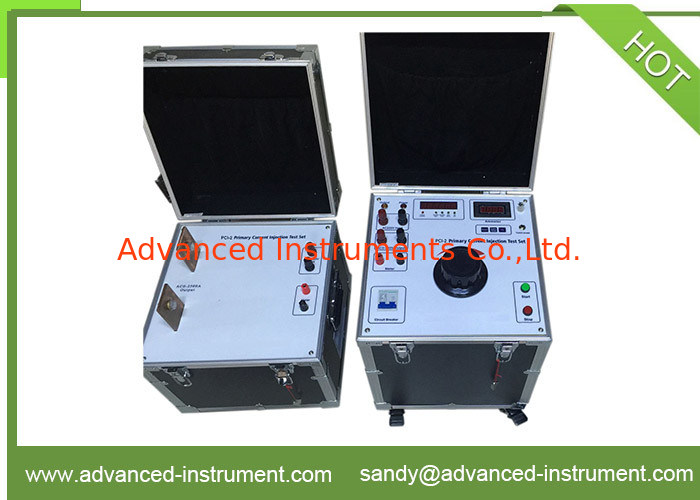

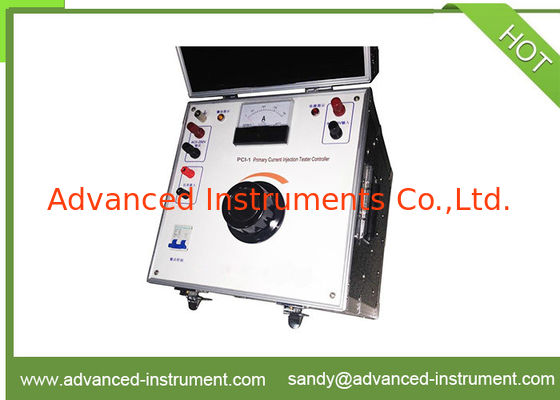

Picture of Primary Current Injection Test Kit
