| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO |
| رقم الموديل: | BDV |
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | كرتون |
| وقت التسليم: | 15 يومًا |
| شروط الدفع: | T/T ، Western Union ، L/C |
| القدرة على العرض: | 100000 مجموعة في الشهر |
| مزود الطاقة: | AC220V ، 50 هرتز | عرض: | شاشات الكريستال السائل |
|---|---|---|---|
| جهد الخرج: | التيار المتناوب 0 فولت ~ 80 كيلو فولت أو 0 ~ 100 كيلو فولت | دقة: | ±(1% من الحجم الكامل + رقمين) |
| ضمان: | 1 سنة | الكلمة الرئيسية: | جهاز اختبار زيت العزل، جهاز اختبار جهد الانهيار BDV |

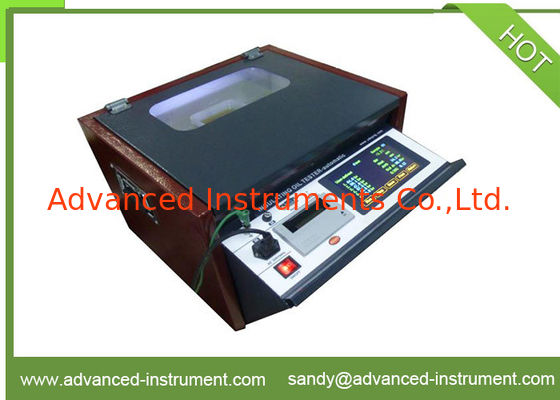

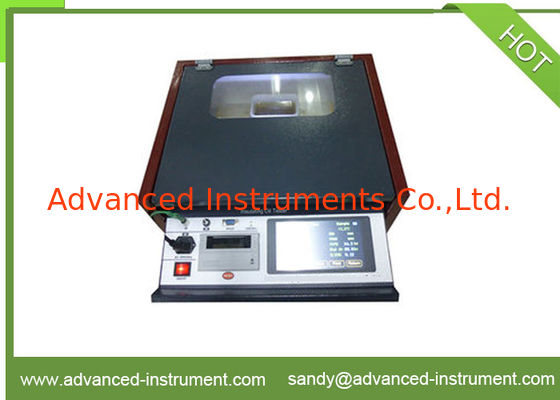

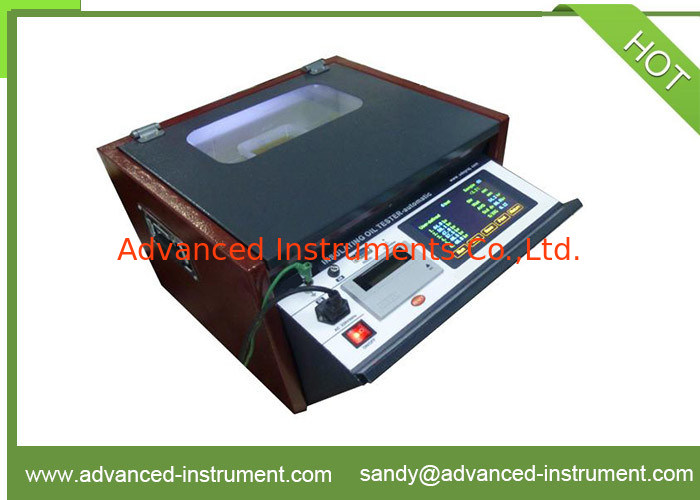

IEC156 80kV Transformer Oil Breakdown Voltage BDV Tester
I.Introduction:
It is designed according to IEC156 Insulating Oil Dielectric Strength Test Method;
The oil test vessel with temperature measurement unit, so it can detect oil temperature.
With 8 Kinds of test mode as optional: IEC156, IS6792, BS5874, ASTM D1816 , ASTM D877, Proof test, 5 minutes standard test, Manual test;
This transformer oil breakdown voltage tester has large LCD display, all the selection can be done by touch panel with color LCD;
This insulation oil BDV testesr also has micro-printer and can store 100 groups data, test data can also be unload to PC and output word report automatically;
This transformer oil withstand voltage tester is multi-functional, stable, and easy for operation
II.Specifications:
| No. | Parameters | Specifications |
| 1 | Output voltage | AC 0V~80KV or 0~100KV |
| 2 | Rate of voltage rise | 0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5% |
| 3 | Max. test times | 9 |
| 4 | Stir time | 0~999s |
| 5 | Wait time | 0~999s |
| 6 | Measurement accuracy | ±(1% of full scale + 2 digits) |
| 7 | Resolution | 0.1KV |
| 8 | Temperature measurement range | 0°C to 70°C, or better |
| 9 | Temperature resolution | 1°C, or better |
| 10 | Data storage | 100 groups |
| 11 | Weight | 38kg |
| 12 | Size | 550 mm*500mm*580mm |
| 13 | Power supply | AC220V, 50Hz |
| 14 | Working environment | Room temperature to 45°C, humidity<85% |

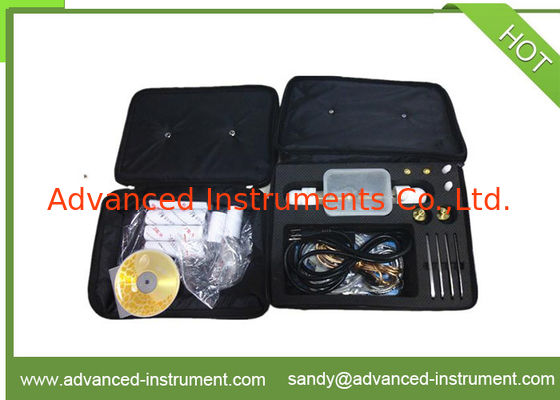

Picture of Automatic Insulation Oil BDV Tester Spares
