| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO |
| رقم الموديل: | سي بي ايه-2 |
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | كرتون |
| وقت التسليم: | 15 يومًا |
| شروط الدفع: | T/T ، Western Union ، L/C |
| القدرة على العرض: | 100000 مجموعة في الشهر |
| مزود الطاقة: | AC220V ± 10٪ 50 هرتز ± 10٪ | عرض: | شاشات الكريستال السائل |
|---|---|---|---|
| الكلمة الرئيسية: | محلل الخصائص الديناميكية، مجموعة اختبار قواطع الدائرة | وزن: | 10 كجم |
| نطاق القياس: | 6000 مللي ثانية | ضمان: | 1 سنة |
The High-Voltage Circuit Breakers Test Instrument is designed to meet the need of testing High-Voltage Circuit Breakers . It takes the ARM7 unit for core to sample, process and then output; the main characteristic is that it’s operated in alt.
This dynaic characterisitics of circuit breaker test instrument has many advantages such as intelligence, multi-function, accurate data, strong anti-jamming, easy operation, small size, beautiful appearance, etc.
It can test different Circuit Breakers ,such as: indoors or outdoors Circuit Breakers with less oil or more oil, vacuum Circuit Breakers, SF6 Circuit Breakers and so on.
1, Test standard of circult breaker tester: IEC62271
2, Closing and opening time measurement of 12 channels
3, Max difference of closing or opening time measurement of three phases
4, C-O and O-C time measurement can also be done by dynamic characterisitc test instrument.
5, Rated operation sequence test
6, Bounce time and frequency measurement of breaker closing
7, Circuit breaker closing and opening speed measurement
8, Travel-time, Coil current-time curve of circuit breaker operation measurement
9, Travel and clearance of circuit breaker measurement
10, Variable DC circuit breaker operation power supply
11, Closing arc resistance value and connected time measurement
12, Closing time and opening time of graphite circuit breaker measurement
13, Print test results by built-in printer of dynamic characteristics tester.
III.Technical specifications
| 1 | Time measurement range | 6000ms, resolution 0.1ms |
| 2 | Time measurement error | <1%RDG+0.2ms |
| 3 | Speed measurement | Range 2m/s resolution 0.01m/s max error<0.1m/s Range 20m/s resolution 0.01m/s max error<0.2m/s |
| 4 | Travel measurement | Range 50.0mm resolution 0.1mm max error<1%RDG+0.1%FS Range 300.0mm resolution 1mm max error<1%RDG+0.1%FS Range 600.0mm resolution 1mm max error<1%RDG+0.1%FS |
| 5 | Coil current measurement range | 20.00A, resolution 0.01A, error 2%+0.2%FS |
| 6 | Closing resistance value measurement range | 100~10000ohm, error: 5%RDG |
| 7 | DC Power out | DC30V~250V/20A (instantaneous) |
| 8 | Power supply | AC220V±10% 50Hz±10% |
| 9 | Temperature | -10~40°C humidity: <80% |

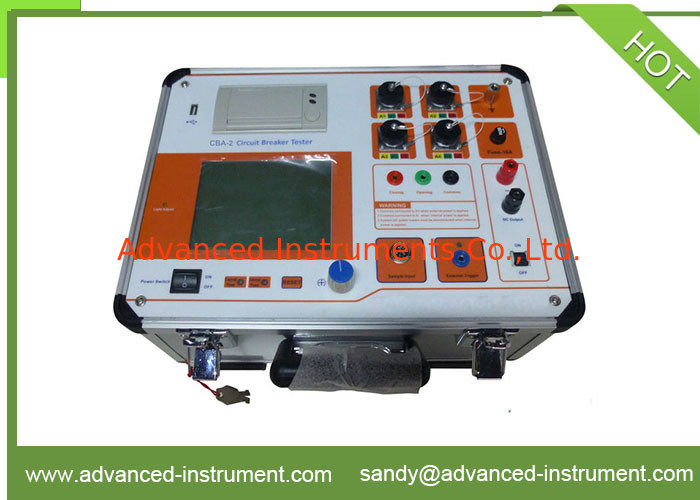

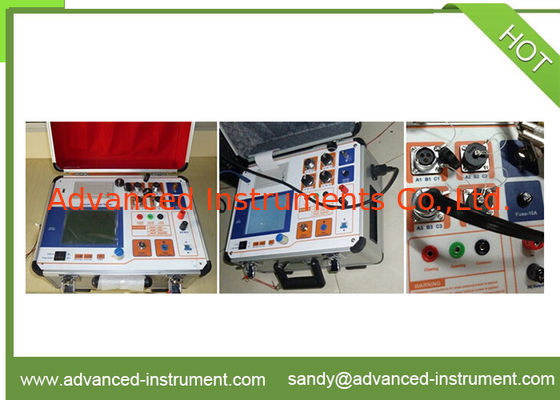

Photos of CBA-2 Dynamic Characteristics Test Instrument
