| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO |
| رقم الموديل: | ح1196 |
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | لوح صلب |
| وقت التسليم: | 20 يومًا |
| شروط الدفع: | L/C ، T/T ، Western Union |
| القدرة على العرض: | 20 مجموعات شهريا |
| المعايير: | غب / T12579، أستم D892، ISO6247، NFT60129 | درجة حرارة العمل.: | المحيطة ~ 250 درجة مئوية |
|---|---|---|---|
| طريقة التدفئة: | حمام الزيت | مزود الطاقة: | AC220V ± 10 ٪ ، 50 هرتز |
| التحكم في درجة الحرارة: | PID المستورد | ضمان: | 1 سنة |
| القوة الكلية: | 5 كيلو وات | وحدات العمل: | 4 وظائف |
| طريقة التوقيت: | مؤقت رقمي |

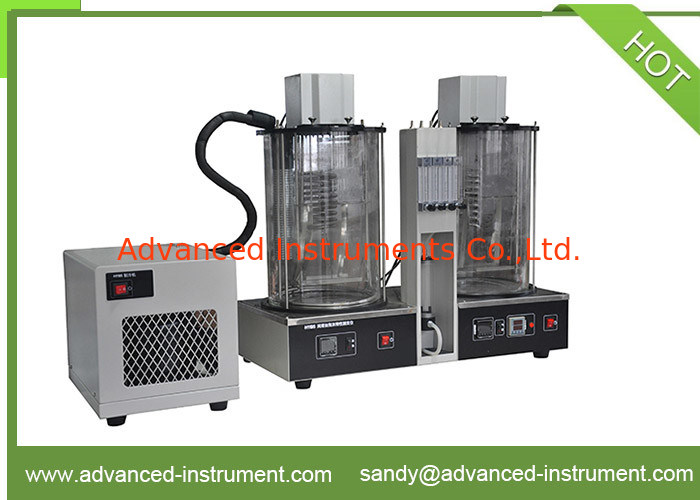

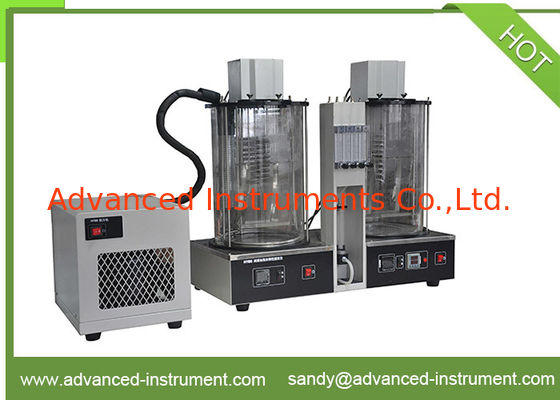

Foaming Tendency Apparatus Bath with Cooler
Introduction
The tendency of oils to foam can be a serious problem in systems such as high-speed gearing, high-volume pumping, and splash lubrication. Inadequate lubrication, cavitation, and overflow loss of lubricant can lead to mechanical failure. This instrument is used in the evaluation of oils for such operating conditions.
I.Main features
1.This equipment in separate,including heating bath and precise flowmeter
2.The material of bath is high temperature resistant Borosilicate glass,Φ300×450mm.It fulfills the standard requirements.
3.Environmental oil bath heating can reduces the harm of smoke to peoples,and it also has high heat insulation effect.
4.Heater is stainless steel
5.Flow meter is highly precise with needle valve,0~94ml/min
6.Air filter has glass wool
7.Cooler is included.
8.Working temperature:ambient~250℃,with safety device for over-heated or low liquid level
9.Micro-computer controller,PID function,digitally display temperature(continuously display during test),accuracy 0.1℃,Pt100 temperature sensor.
II.Technical specifications
| 1 | Applicable standards | GB/T12579,ASTM D892,ISO6247,NFT60129. |
| 2 | Working unit | 4 units |
| 3 | Heating method | oil bath |
| 4 | Temperature controlling method | Imported digital PID |
| 5 | Temperature controlling accuracy | ±0.1℃ |
| 6 | Working temperature | ambient~250℃ |
| 7 | Total power | 5KW |
