| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | AI |
| إصدار الشهادات: | ISO |
| رقم الموديل: | F8010 |
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | لوح صلب |
| وقت التسليم: | 20 يومًا |
| شروط الدفع: | L/C ، T/T ، Western Union |
| القدرة على العرض: | 20 مجموعات شهريا |
| المعايير: | أستم D1881، ش/T0066 | التحكم الرقمي في درجة الحرارة: | 88±1 درجة مئوية |
|---|---|---|---|
| تدفق الهواء: | 1000±25مل/دقيقة | وحدات العمل: | 3 ثقوب |
| عرض الضغط: | مقياس الضغط | مزود الطاقة: | AC220V ± 10 ٪ ، 50 هرتز |
| إجمالي استهلاك الطاقة: | 2000W | ضمان: | 1 سنة |

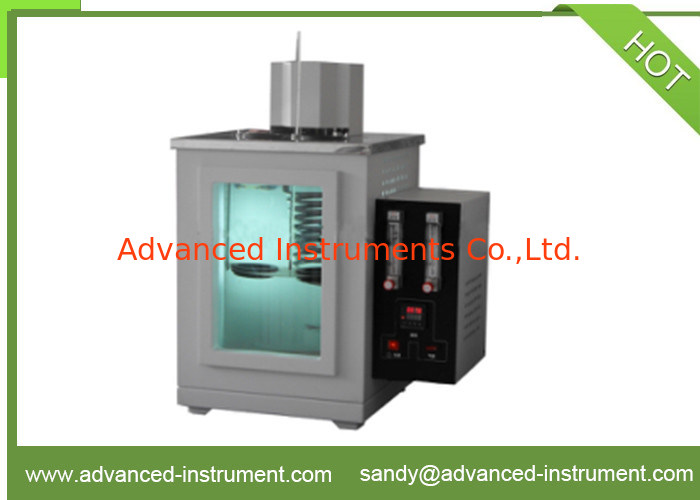

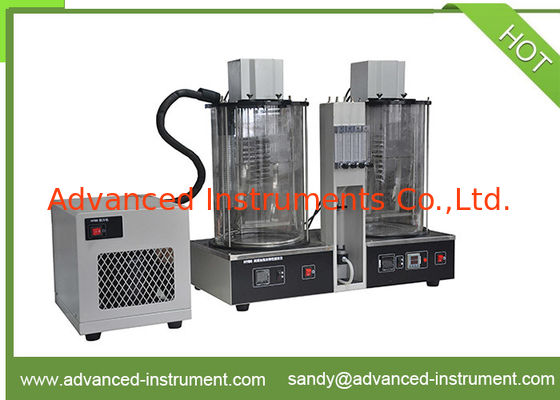

Engine Coolants Foaming Tendencies in Glassware Analyzer
Features:
1.Adopts high temperature glass as heating bath to ensure the constant and even working temperature.
2.Stainless steel skeletal, with Pyrex tank and cover, can place and fix 2pcs cylinders, no need of steel ring to avoid floating;
3.With 2pcs high accuracy flow meters, 1pc controlling box including all electric elements;
4.It can do testing at 88℃;
5.Aluminum cover with 2 holes for placing cylinders;
6.Electric heating bath, with stirring device above;
7.Stainless steel heating device;
8.Stainless steel cooling ring, when connect with cooling water it can control bath temperature at 24℃, which meet ASTM D892 requirement;
9.Adjustable and accurate flow meter with pin valve, support and exhauster connection;
10.2pcs exhausters, original Norton(aluminum made ball type) or Mott(stainless steel made cylinder type);
11.2pcs 1000ml with scale Pyrex cylinders, with rubber plug;
12.Micro-computer control, PID function, digital display temperature, accuracy 0.1°C, Pt100 RTD temperature probe;
Specifications:
| Applicable standards | ASTM D1881, SH/T0066 |
| Digital temperature control | 88±1℃ |
| Air flow | 1000±25ml/min |
| Working unit | 3 holes working simultaneously |
| Pressure display | pressure meter |
| Pressure adjustment | Through flow meter |
| Stirring method | Electric stirring |
| Heating method | Electric tube heating |
| Power supply | AC220V ± 10%, 50Hz |
| Heating power | 2000W |
| Measuring range | room temperature ~ 99.9 °C |
| Ambient temperature | -10~ +40℃ |
| Relative humidity | 85% |
